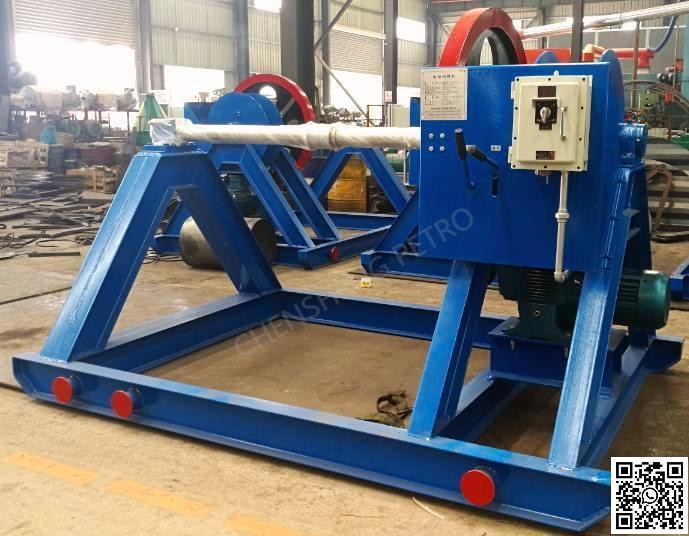

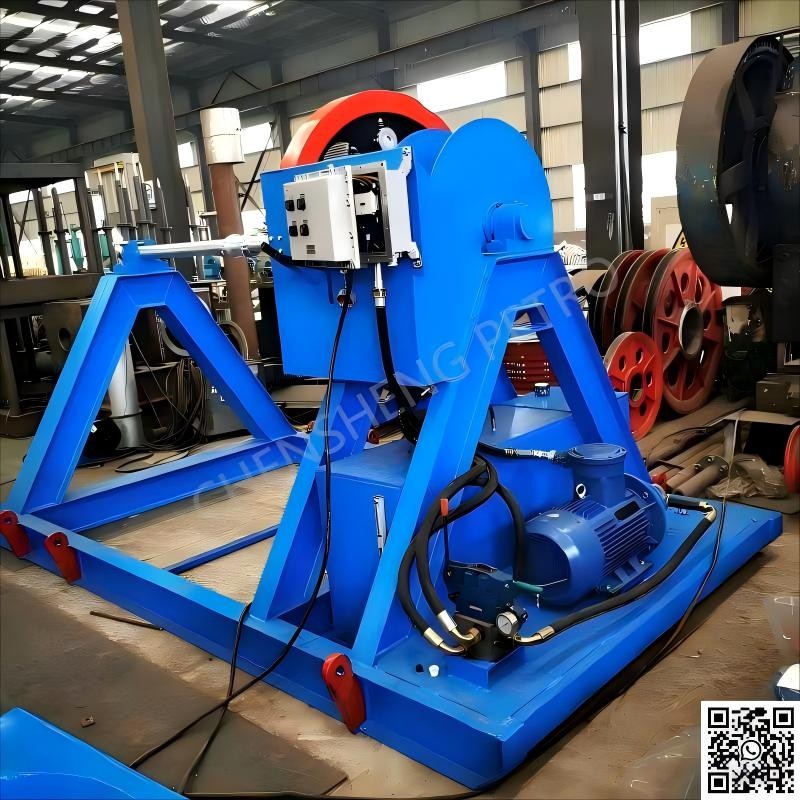

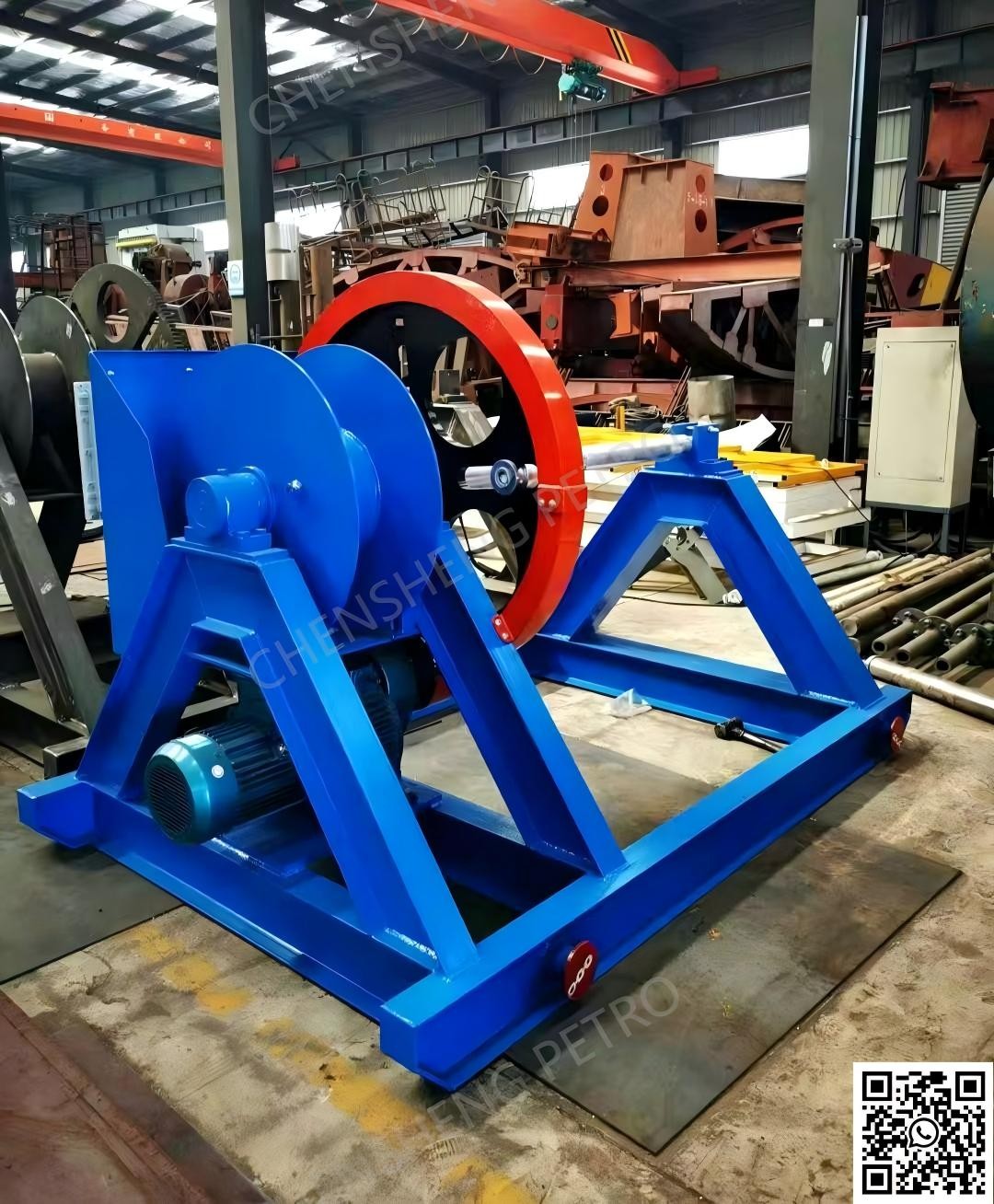

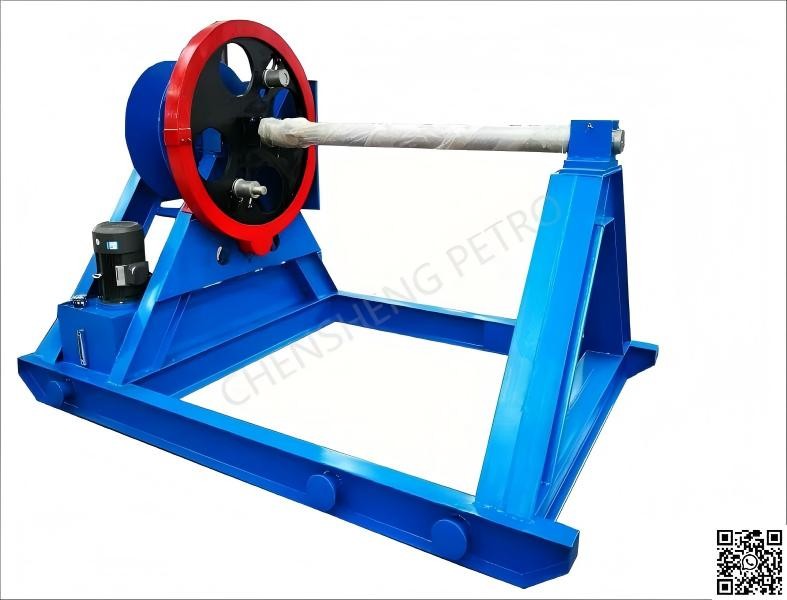

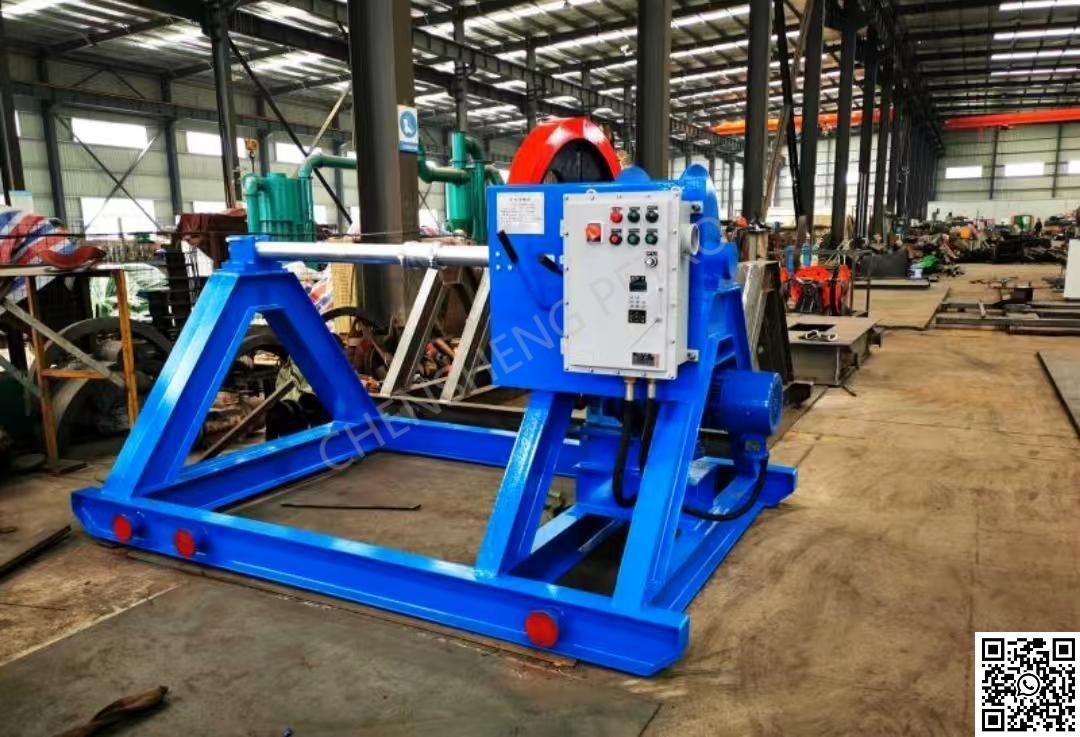

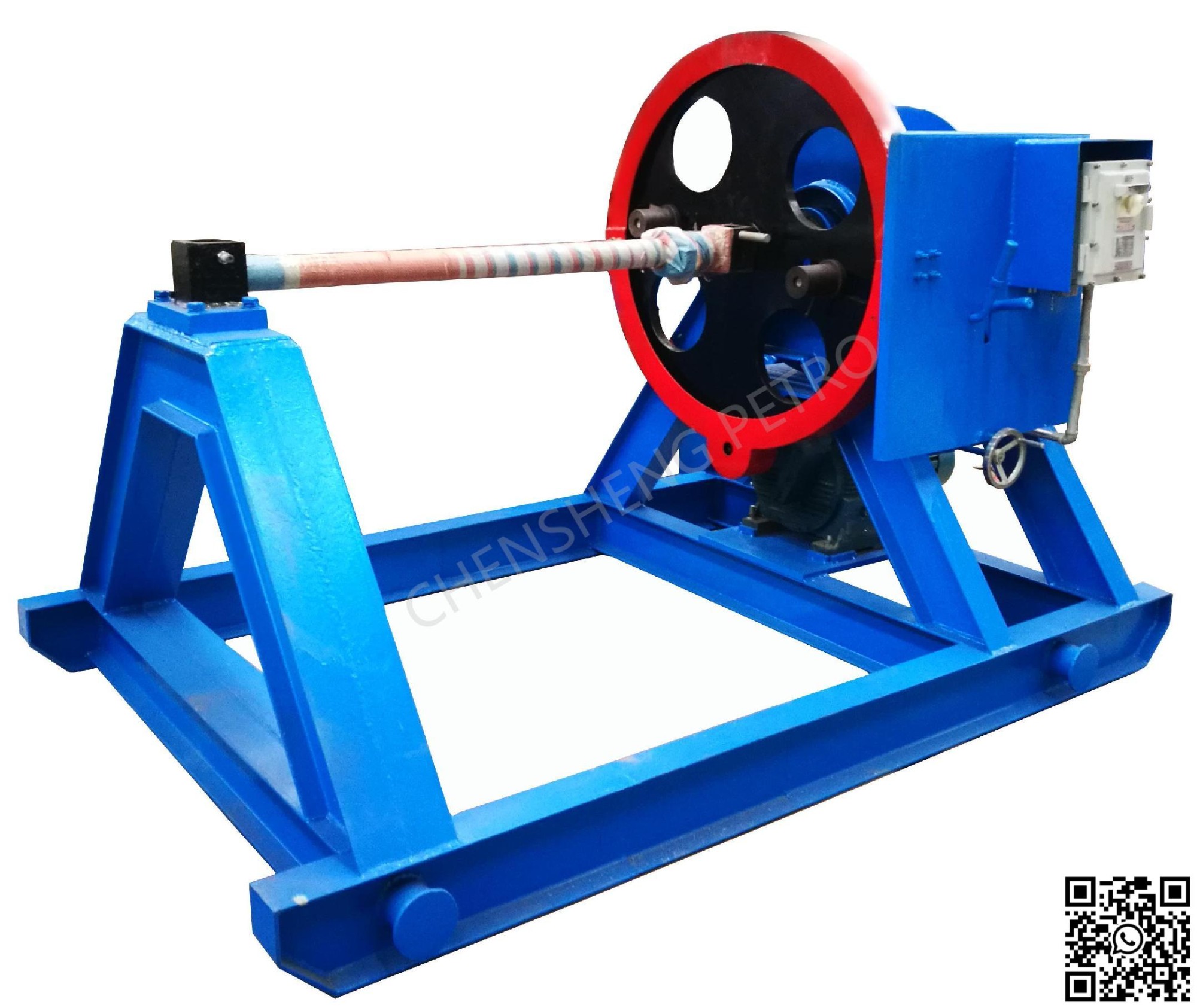

Wireline Spooler is the special equipment machine for drilling rig used to wear and closing the wireline.
Technical Parameters:
| Model Spec | DSJ8-D | DSJ15-D | DSJ8-Y | DSJ15-Y |
| Drive Type | Electric | Hydraulic | ||
| Support Spacing (mm) | 1260 | 1320 | 1260 | 1320 |
| Height of Center (mm) | 1105 | 1650 | 1105 | 1650 |
| Rated Output Torque (KN.m) | 10 | |||
| Rated Speed (RPM) | 3.7-18 | 0.55-17.5 | ||
| Motor Power (KW) | 5.5KW 380V 50Hz | |||
| Hydraulic Pressure (MPa) | 16MPa, Flow:100L/min | |||
| Max Workload (KN) | 80 | 150 | 80 | 150 |
| Weight (KG) | 1500 | 1800 | 1500 | 1800 |
| External Dimension (mm) | 2673x1728x1630 | 3045x2050x1845 | 2673x1728x1845 | 3045x2050x1845 |
Foreign Cooperation Display
On Site Work Display

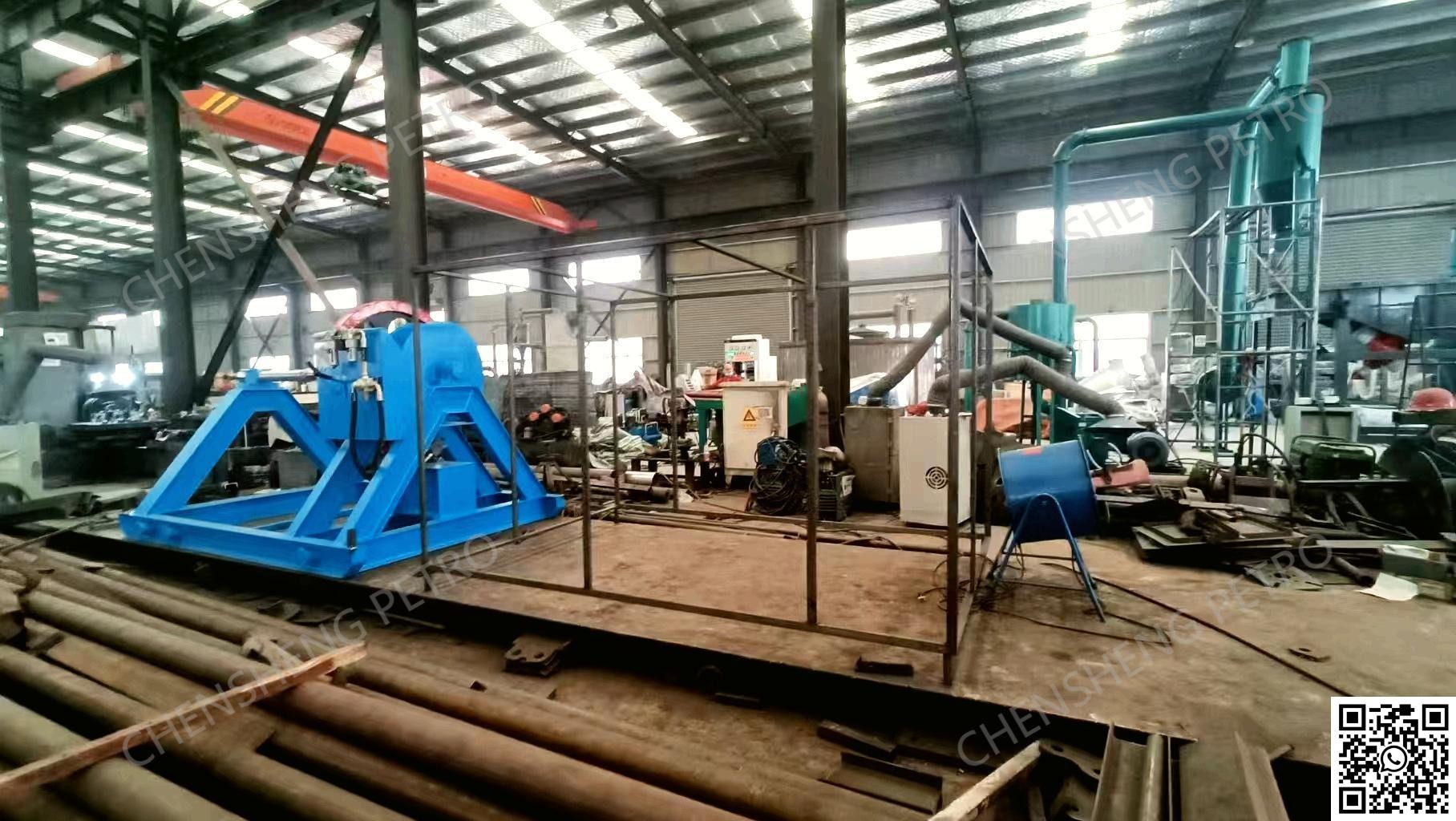

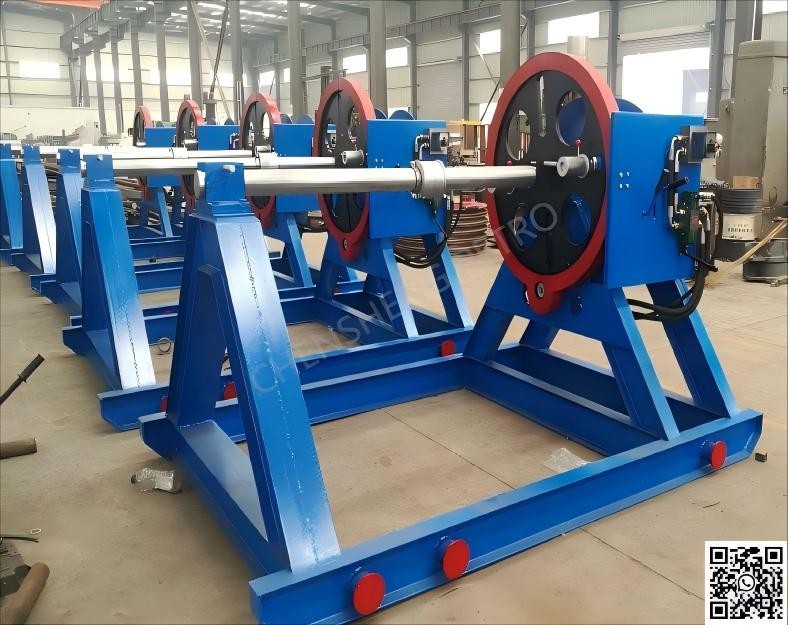

Internal Factory Display
