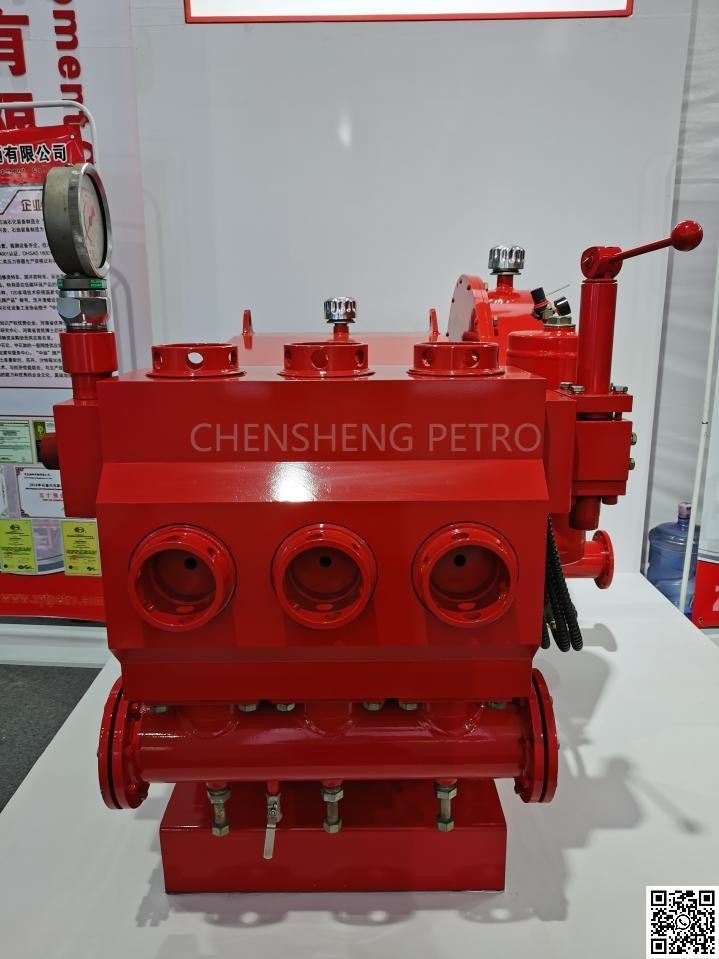

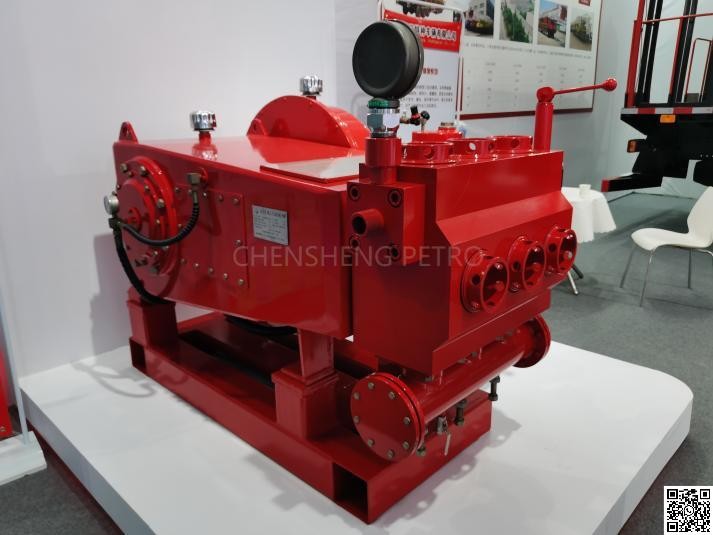

3ZB-185-II Triplex Plunger Pump
3ZB-185-II Triplex Plunger Pump
Our triplex plunger pump (well flush pump) mainly used for oilfield well flush service and workover service. Triplex cylinder single action plunger design, compose of power end, hydraulic end and lubrication system. Gear reduce box is external type, packing seal in hydraulic end, packing can be adjustable in order to avoid leakage.
There are options for corrosive medium. Lubrication pump is equipped in power end, hydraulic end lubrication method is air driving.
| Model | 3ZB-185-II | |
| Max. input power | kW (hp) | 185 (252) |
| Max. input speed | r/min | 1230 |
| Max. stroke rating | Min-1 | 268 |
| Stroke | mm | 200 |
| Plunger Dia. | mm | 115 |
| Max. displacement | m3/h | 100 |
| Max. pressure | MPa | 35 |
| Ratio of reducer | i | 4.60 |
| Suction flange | in | 4 |
| Dia. of discharge outlet | in | 2 |
| Stroke rating | ||||||||||
Plunger Dia. | 56 | 100 | 200 | 250 | 287 | |||||
| Displacement | Pressure | Displacement | Pressure | Displacement | Pressure | Displacement | Pressure | Displacement | Pressure | |
| GPM(L/min) | Psi(MPa) | GPM(L/min) | Psi(MPa) | GPM(L/min) | Psi(MPa) | GPM(L/min) | Psi(MPa) | GPM(L/min) | Psi(MPa) | |
| 115 | 62.48 | 5076 | 124.9 | 2755 | 234.1 | 1465 | 312.6 | 1102 | 418.9 | 826 |
| 236.7 | 35 | 473.3 | 19 | 886.7 | 10.1 | 1184.1 | 7.6 | 1586.6 | 5.7 | |
Foreign Cooperation Display

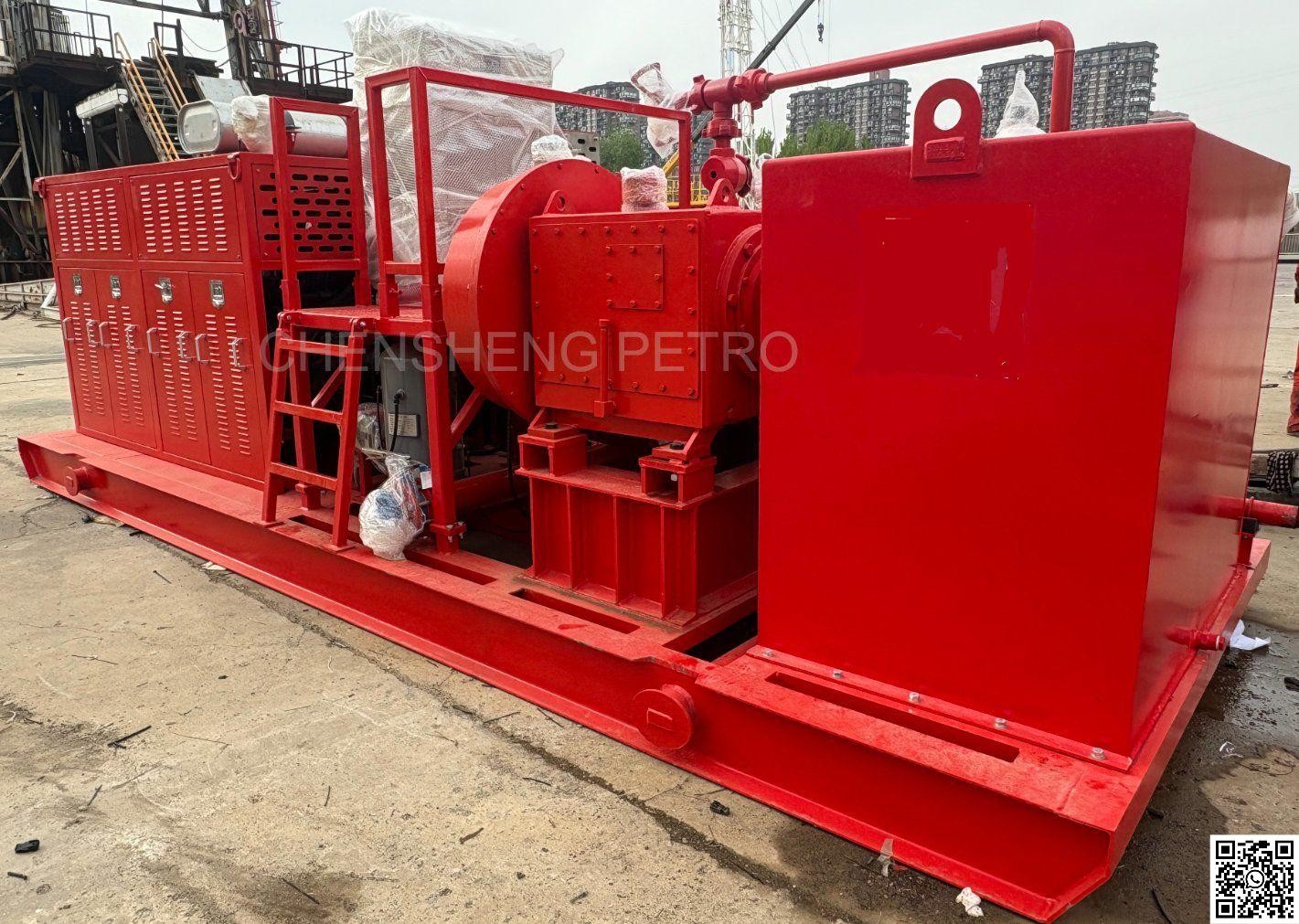

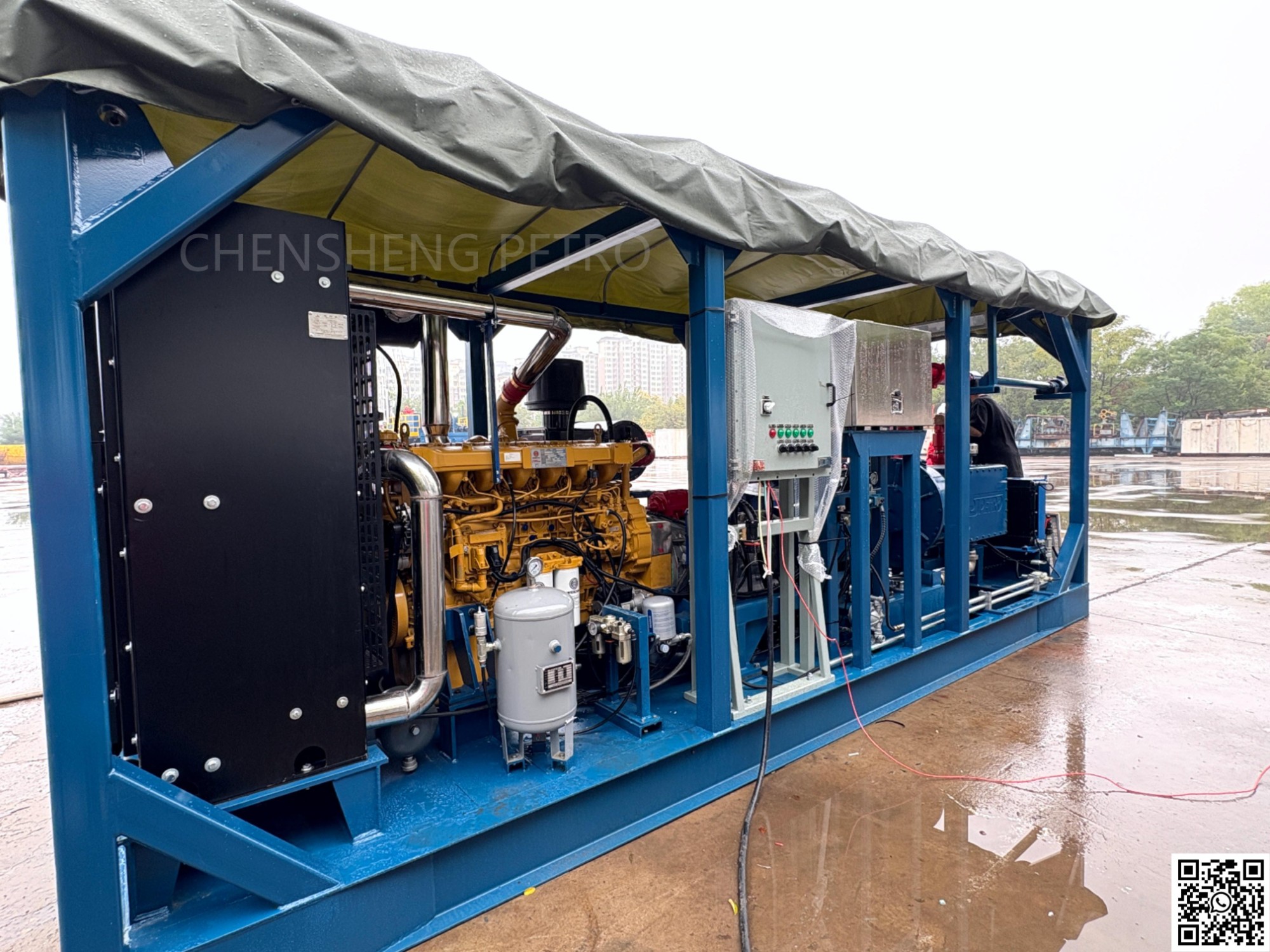

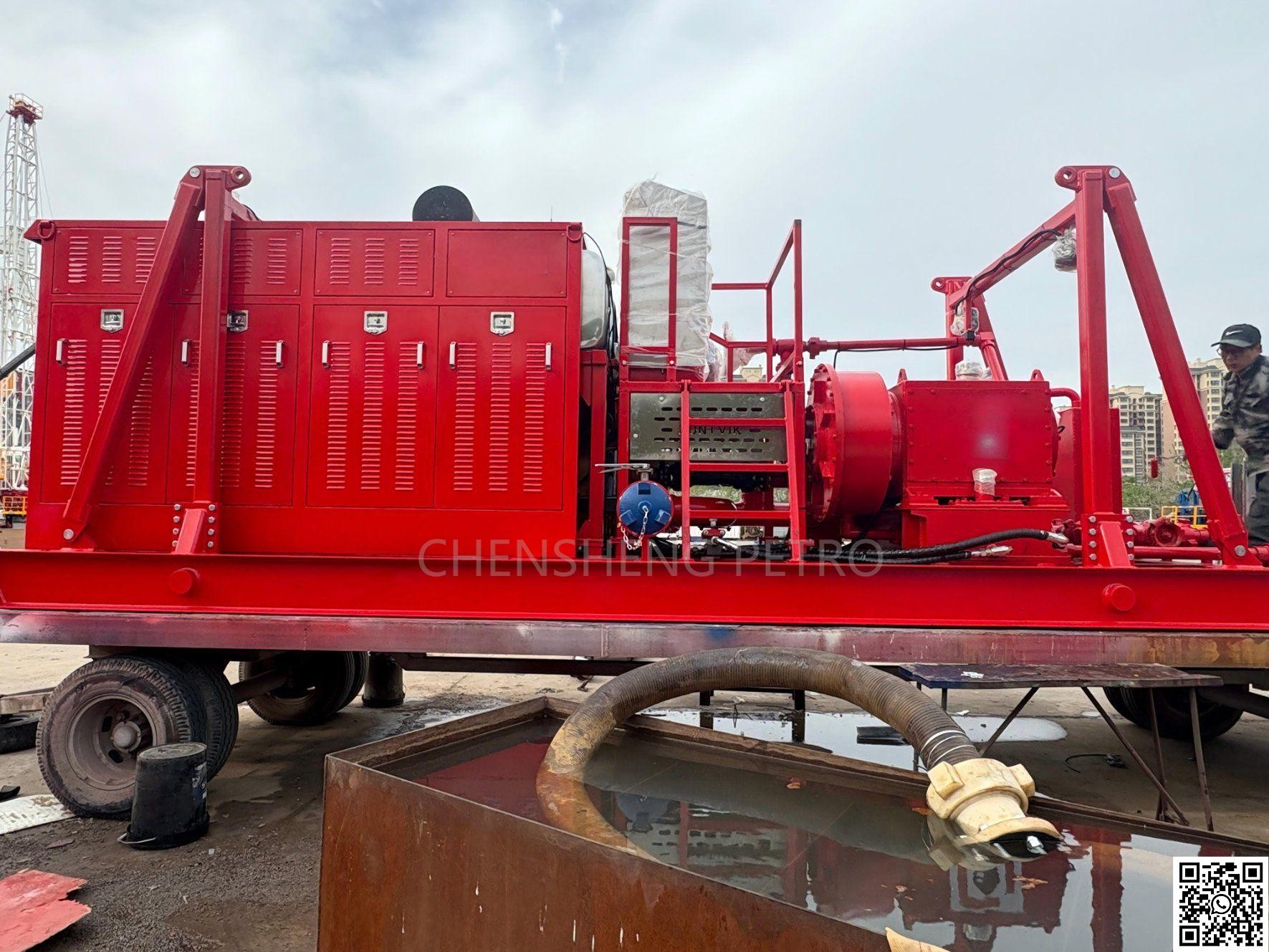

On Site Work Display

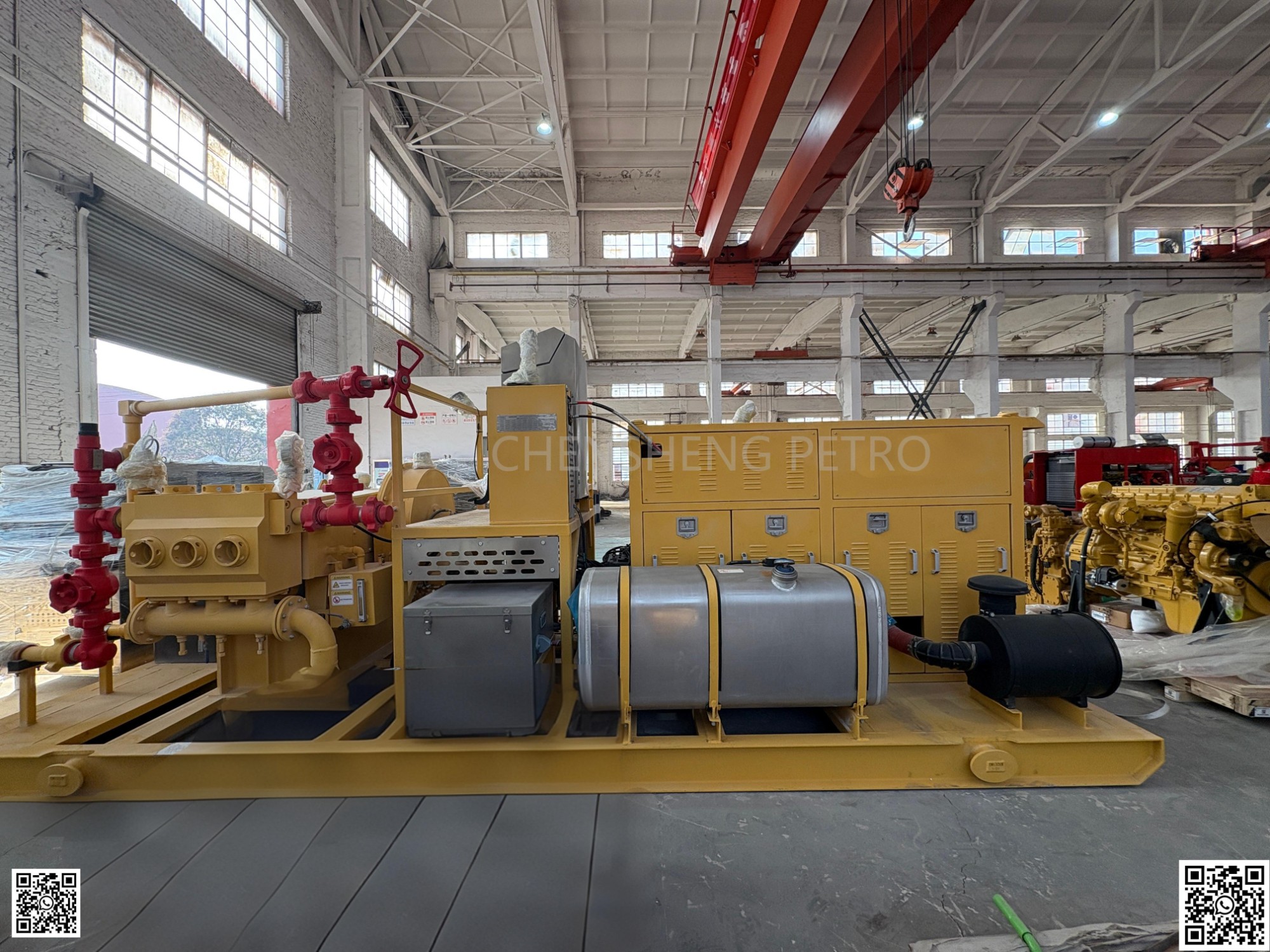

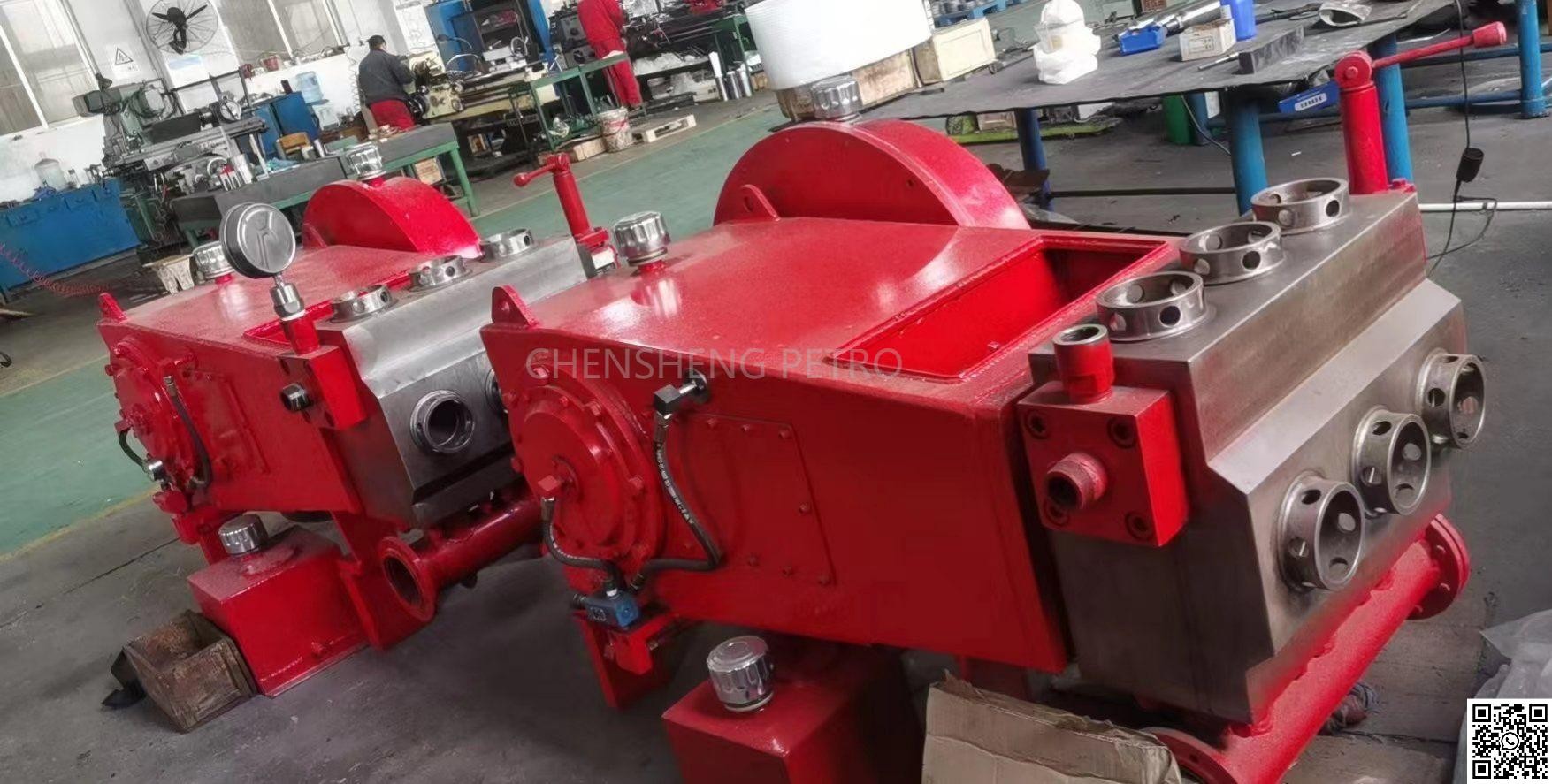

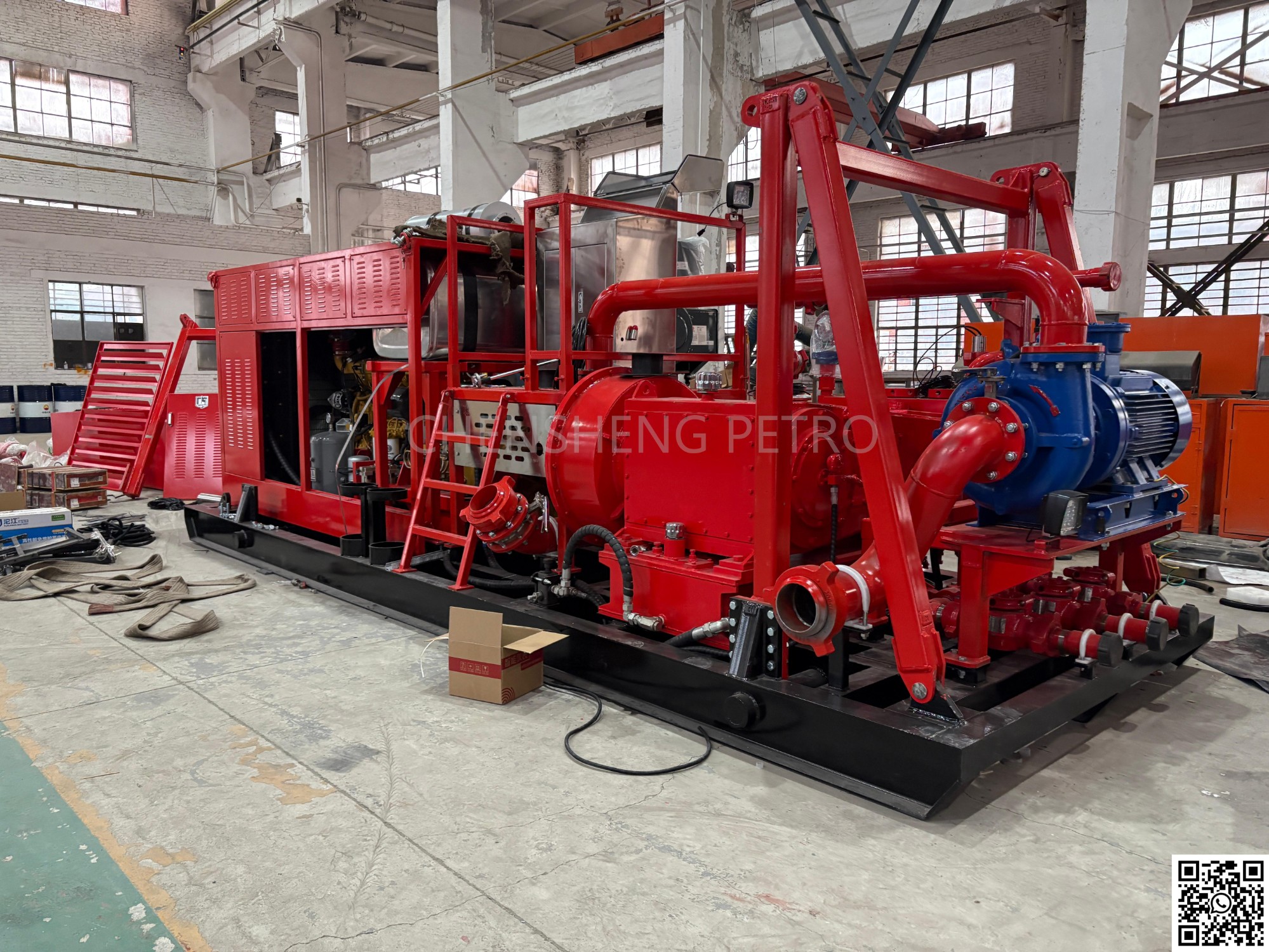

Internal Factory Display
