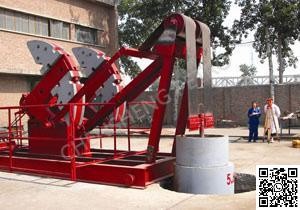

API F series pumping units

API F series pumping unit is a new type of energy-saving
pumping unit without beam. It has low appearance,
flexible transmission and the whole machine is foldable.
It is a new type of ground power equipment in rod oil
production in oilfields.
The product conforms to Specification for Pumping Units
(API Spec 11e) and other relevant standards.

Technical performance characteristics:

① The flexible transmission of roller and belt is applied to reduce the impact load and prolong the service life of the reducer.

② The unique heterogeneous crank and complete crank balance are applied, with good energy-saving effect.

③ The reducer adopts symmetrical split involute herringbone gear transmission, with good sealing, low noise, stable operation, reliability and durability.

④ The whole machine has small volume mass ratio, low appearance, can realize the folding of the whole machine, and is easy to install and move.

⑤ Simple structure, convenient for operation and maintenance, good cost performance.

Main technical parameters of API F series pumping units:

Serial No.	Model	Rated suspension point load（lbs)	Stroke（in)	Rated torque of reducer （in.lbs)
1	F-320D-256-120	25,600	120、 102、 84	320,000
2	F-320D-256-100	25,600	100、86、74	320,000
3	F-320D-246-86	24,600	86、74、62	320,000
4	F-228D-256-100	25,600	100、86、74	320,000
5	F-228D-213-86	21,300	86、74、62	228.000
6	F-228D-246-86	24,600	86、74、62	228.000
7	F-228D-246-74	24,600	74、64、54	228.000
8	F-160D-173-86	17,300	86、 74、 62	160,000
9	F-160D-200-74	20,000	74、64、54	160,000
10	F-160D-173-74	17,300	74、64、54	160,000
11	F-114D-173-64	17,300	64、54、44	114,000
12	F-114D-143-54	14,300	54、 44、 34	114,000
13	F-114D-109-54	10,900	54、 44、 34	114,000
14	F-57D-89-42	8,900	42、33、25	57.000
