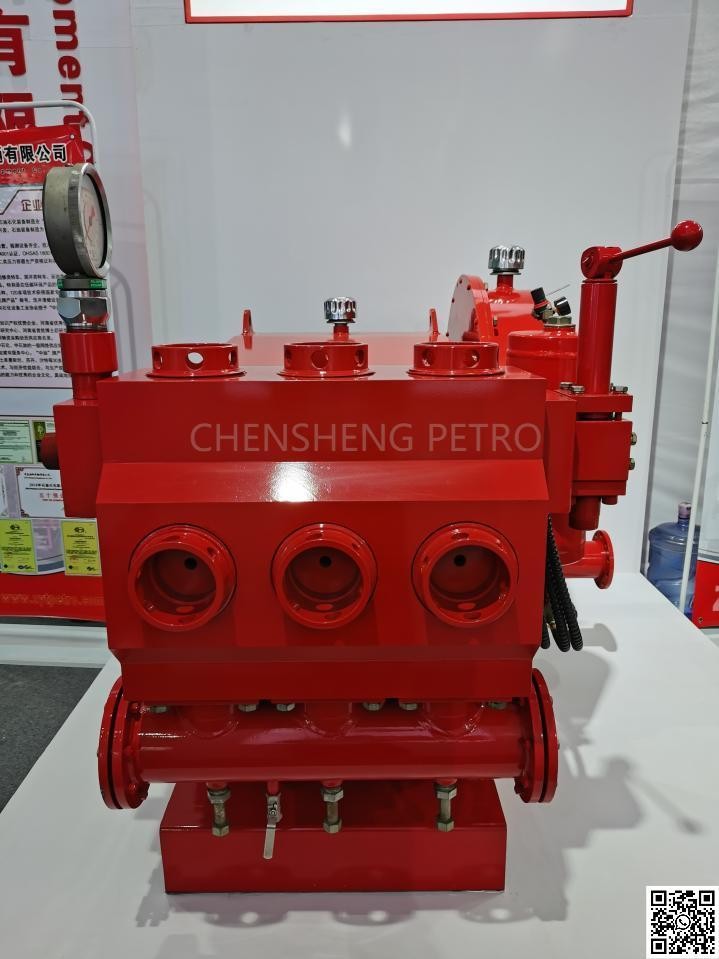

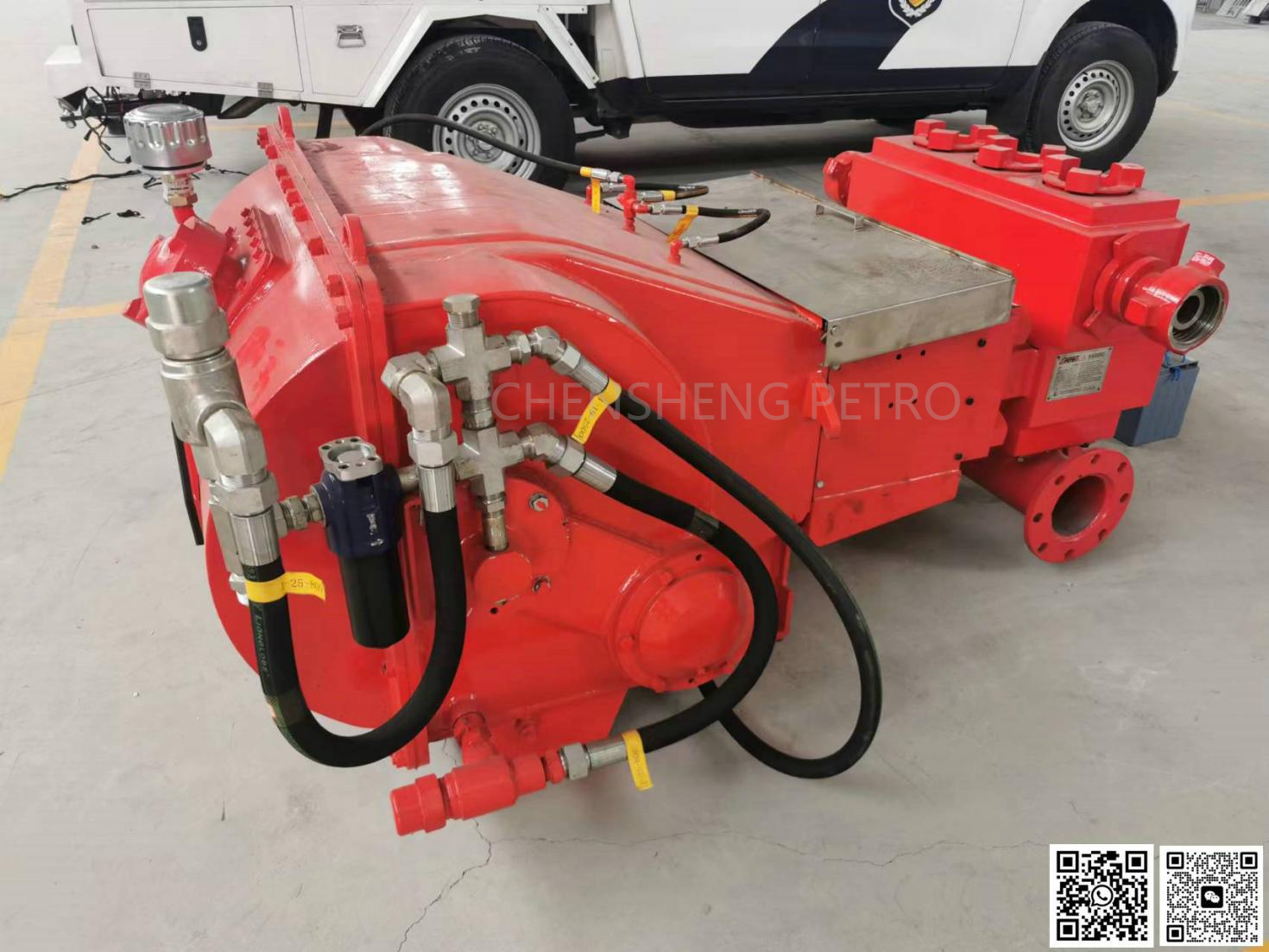

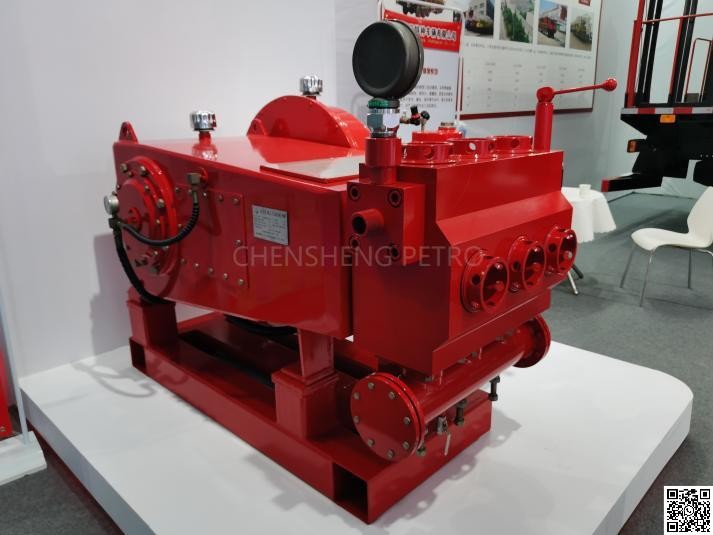

STP350 Triplex Plunger Pump
Maximum input power: 355HP/265kW
Maximum input torque: 7200N.m
Maximum gearshaft rotation speed: 1417r/min
Gear ratio: 4.32:1
Crankshafteccentricity: 63.5mm
Stroke: 127mm.
| Model | Plunger size (mm) | Max. pressure (Mpa) | Theoretical displacement (L/min) | Highest time of stroke |
| TH | 127 | 35 | 1690 | 350 |
| TL | 114.3 | 50 | 1340 | 350 |
| TM | 101.6 | 70 | 1080 | 350 |
| TG | 95.25 | 70 | 920 | 350 |
Foreign Cooperation Display

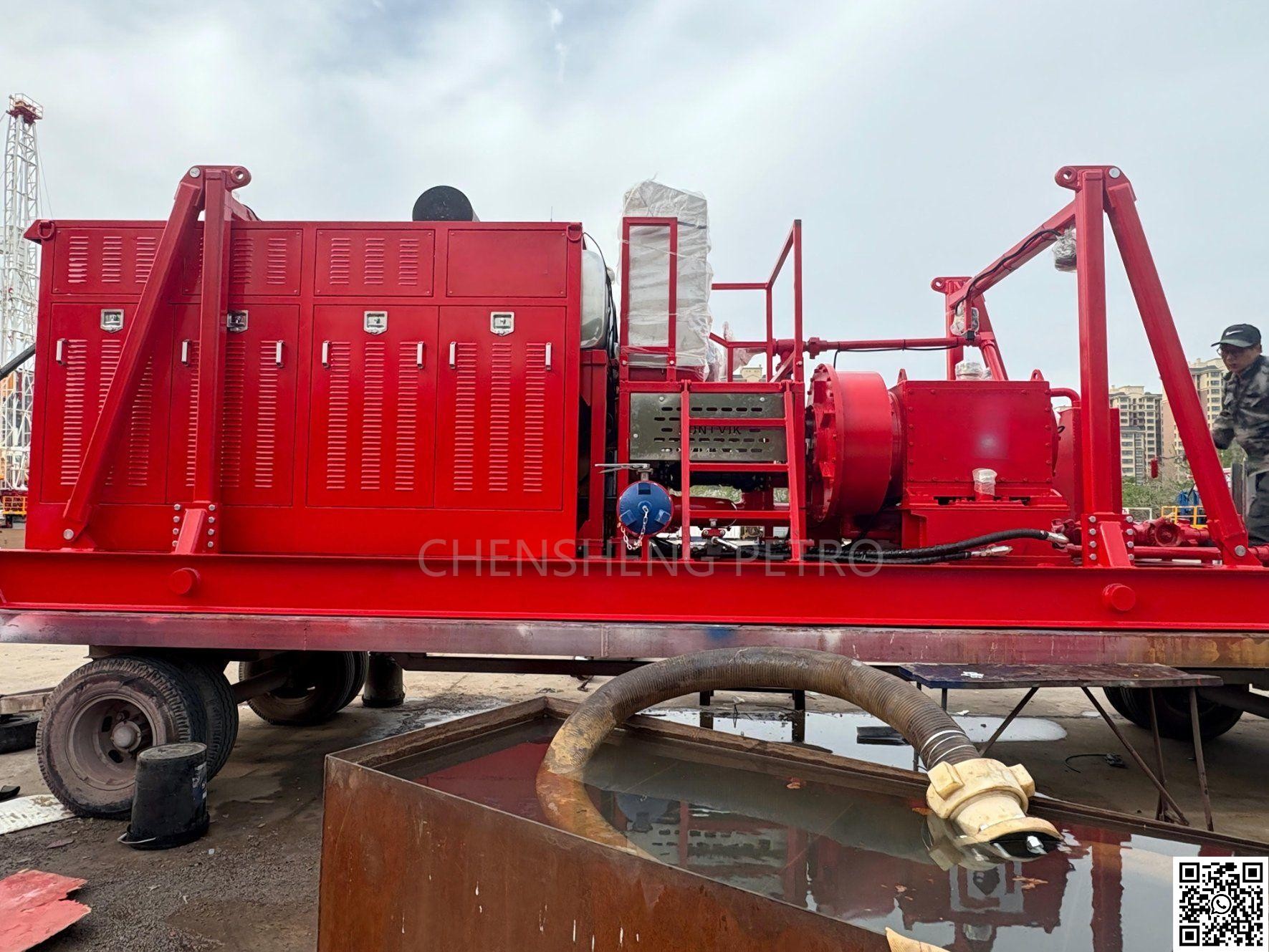

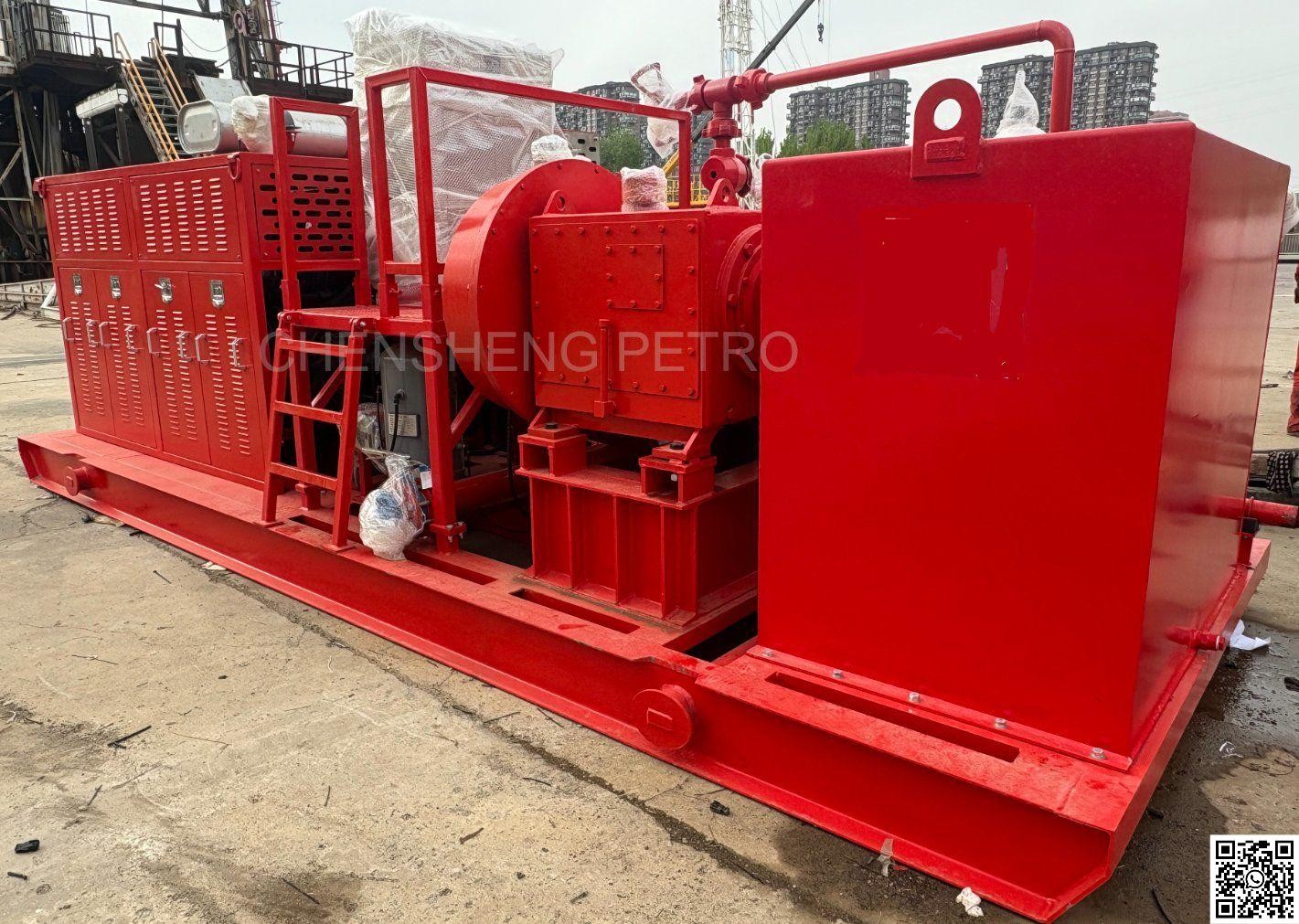

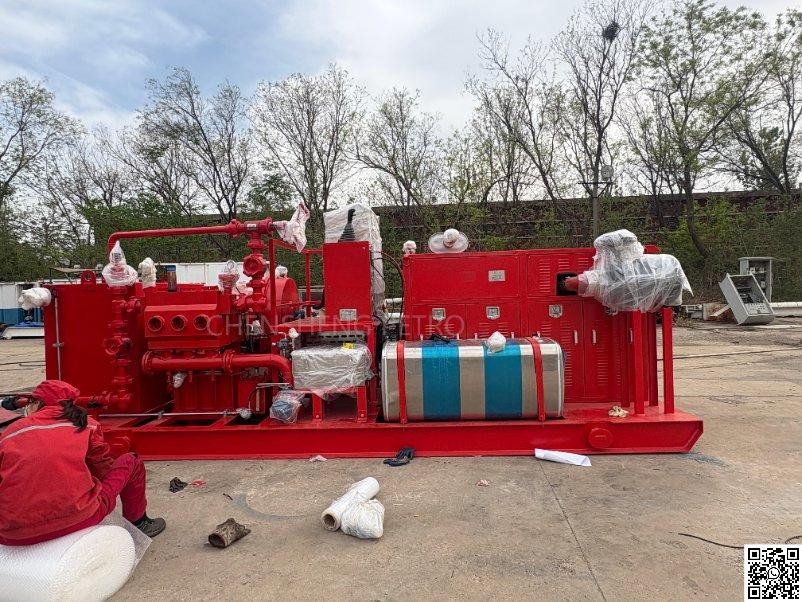

On Site Work Display

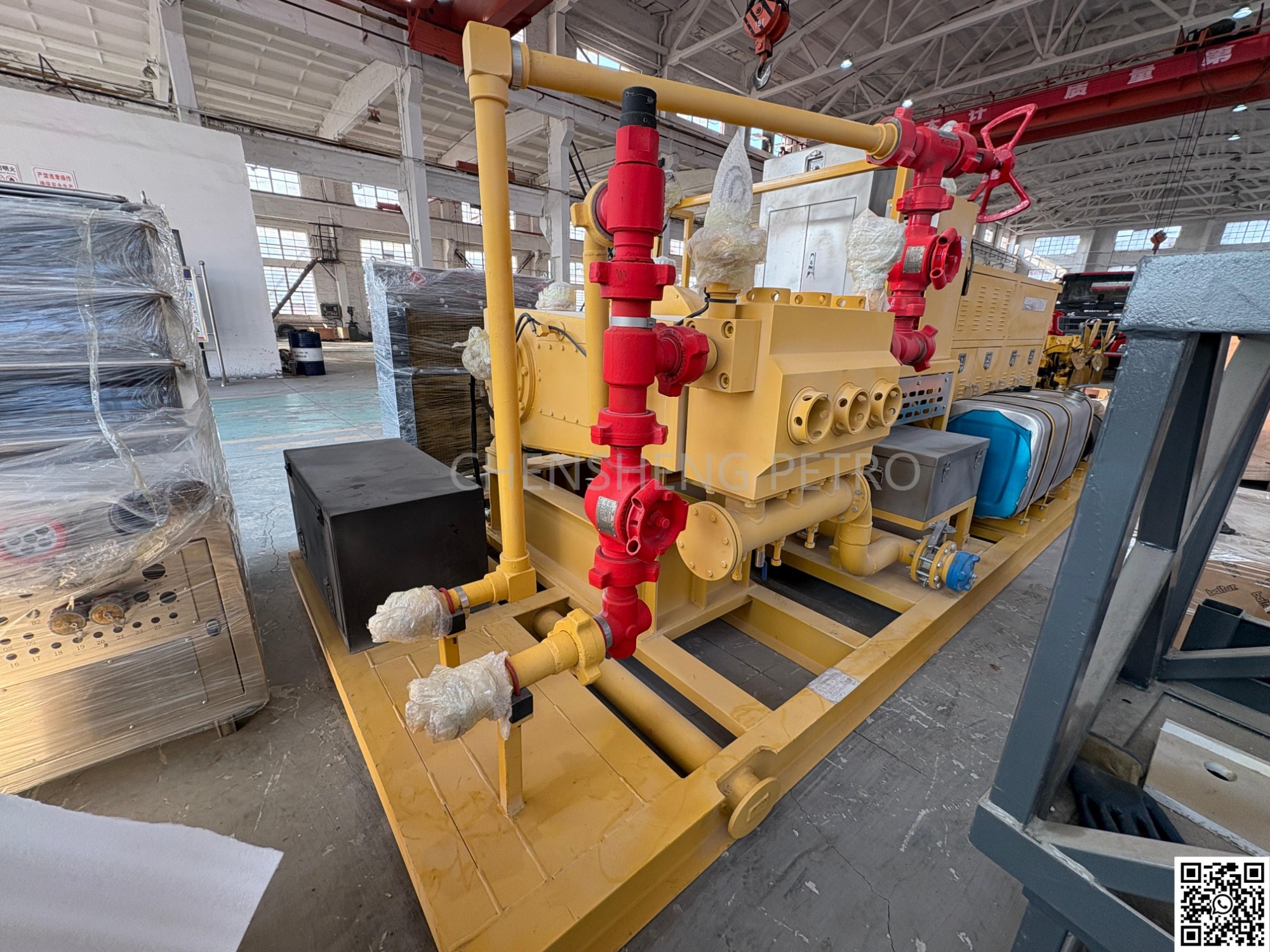

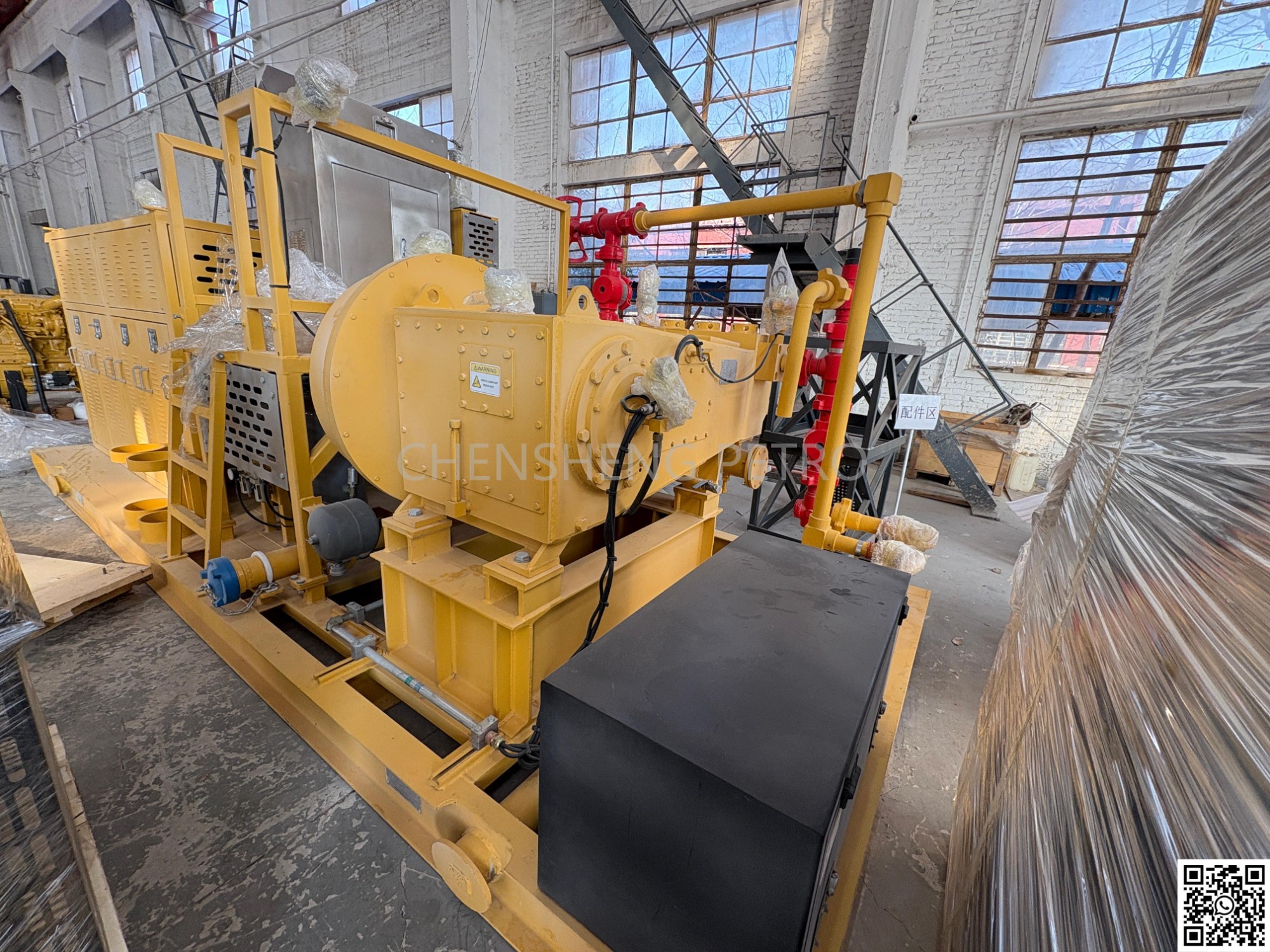

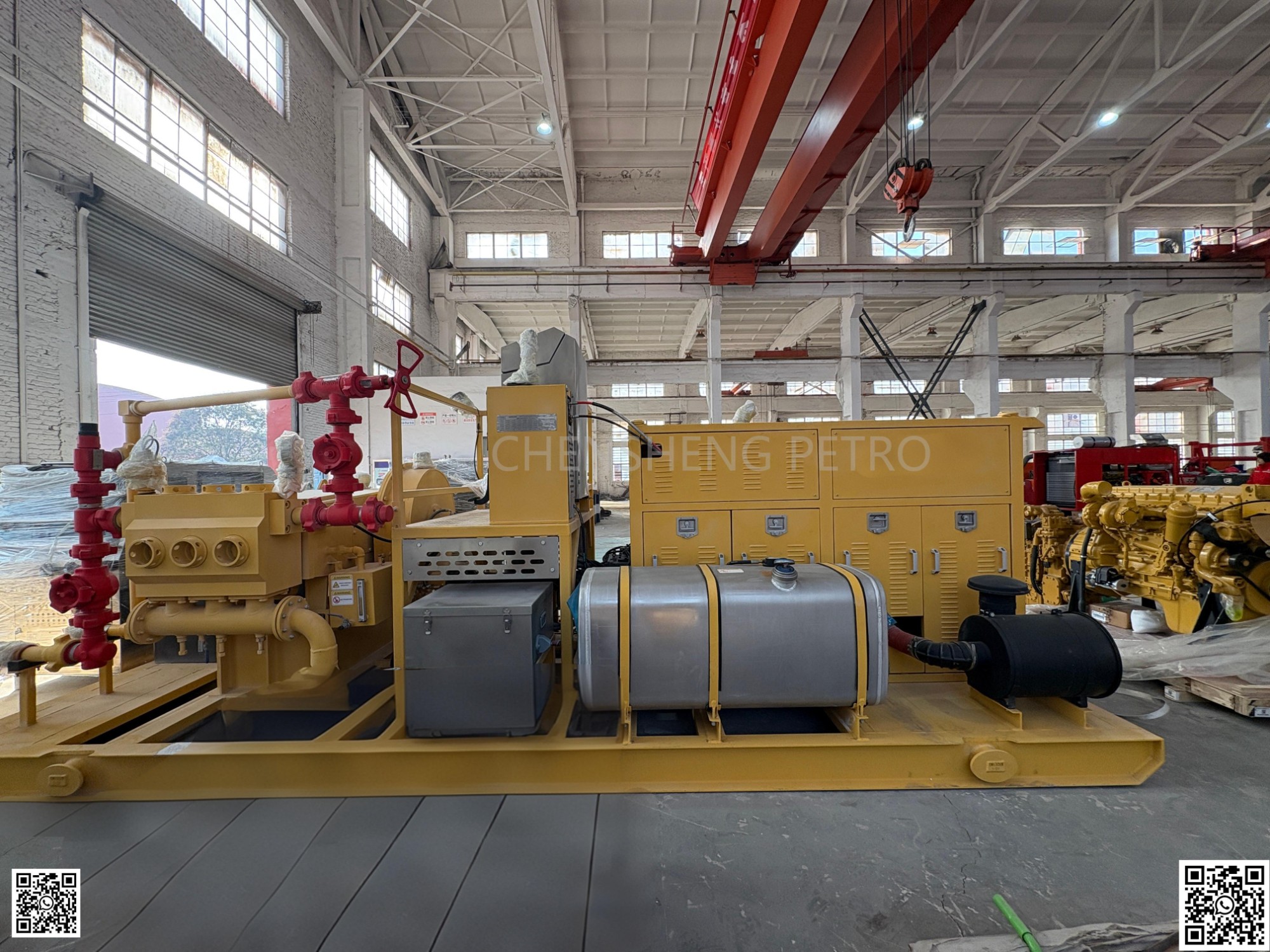

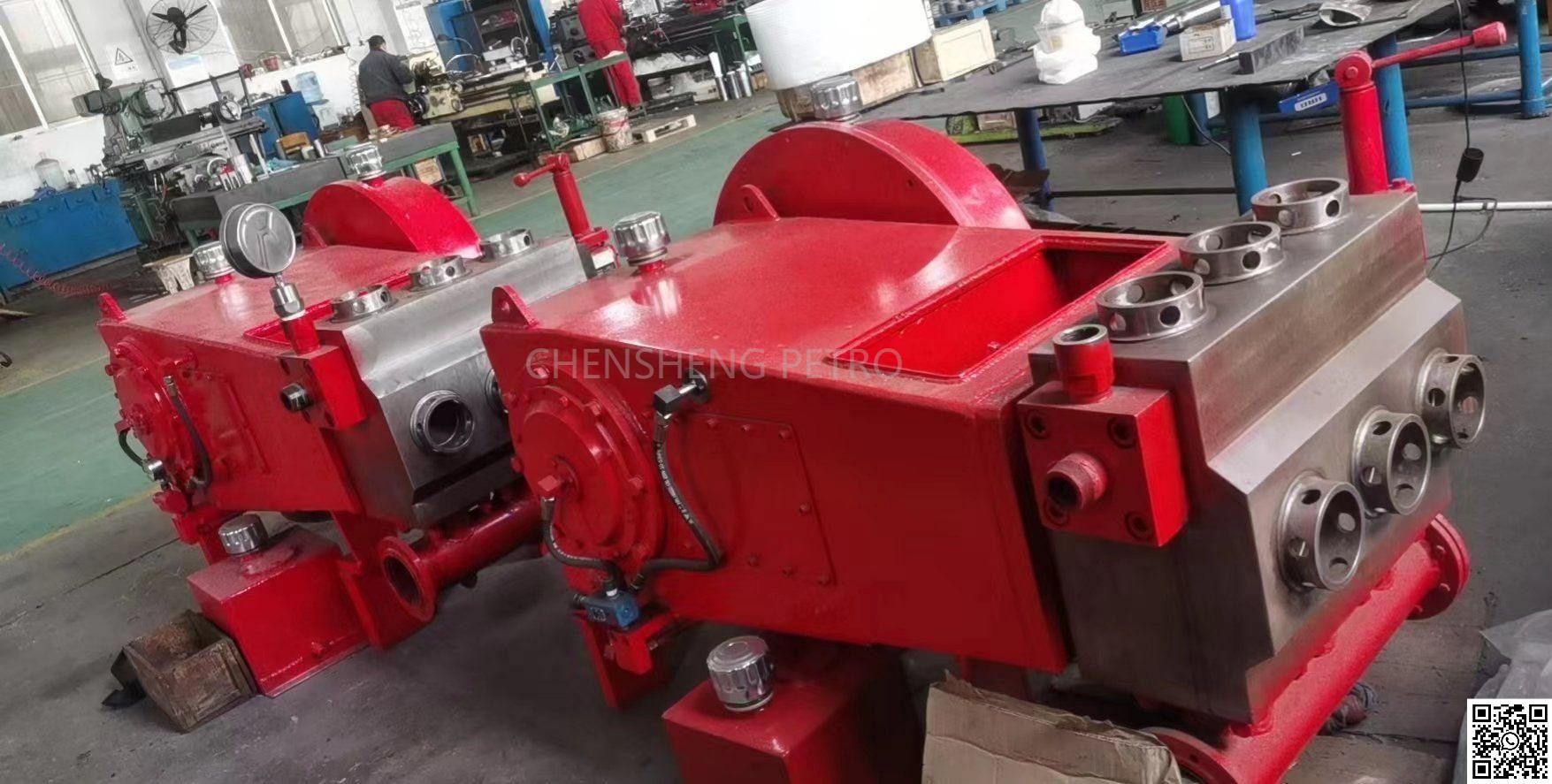

Internal Factory Display
