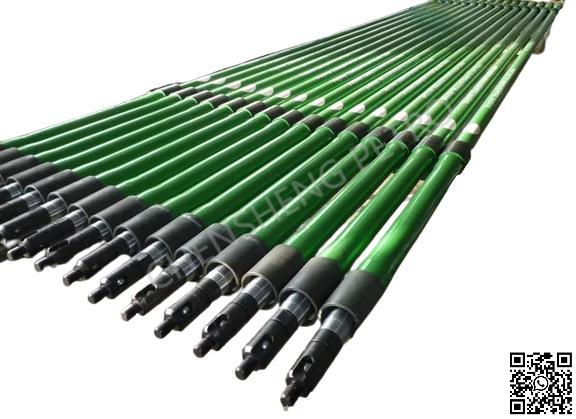

API tubular oil well pump

The tubular oil well pump developed by us is designed
and manufactured in strict accordance with API Spec 11ax
Specification for Underground Rod Oil Well Pump and Its
Accessories. It has the advantages of reasonable design,
convenient operation, high pumping efficiency, corrosion
resistance, wear resistance and so on.

API tubular oil well pump(1)(1).jpg

This kind of pump barrel assembly is connected to the tubing string and down to the bottom of the well. The plunger assembly is connected

to the sucker rod string, running down to the pump barrel in the well, and then plunger assembly performs up and down reciprocating motion,

so as to realize the production process.

In the production process, when the traveling valve and fixed valve show problems, the traveling valve and fixed valve can be pulled out of

the well through the sucker rod string, plunger and puller, rather than the whole pump and tubing string, so as to reduce the operation labor

intensity and operation cost.

Specification	Pump diameter （ft） m	Barrel Length （ft） m	Plunger Length （ft） m	Stroke （ft）	Extension length （ft） m	Tubing and Thread （EUE/NUE）	Sucker Rod （in）
15-106THM	27.0 (1.06)	2–10 (7–34)	0.3–7.9 (1–26)	1.2–8.8 (4-29)	0.6–2.4 (2-8)	1.9″	5/8″ 3/4″ 1″
15-106THC
15-125THM	31.75 (1.25)
15-125THC
20-150THM	38.10 (1.50)					2-3/8″
20-150THC
20-175THM	44.4 5 (1.75)
20-175THC
25-225THM	57.15 (2.25)					2-7/8″
25-225THC
30-275THM	69.85 (2.75)					3-1/2″
30-275THC
40-375THM	95.25 (3.75)					4-1/2″
40-375THM
