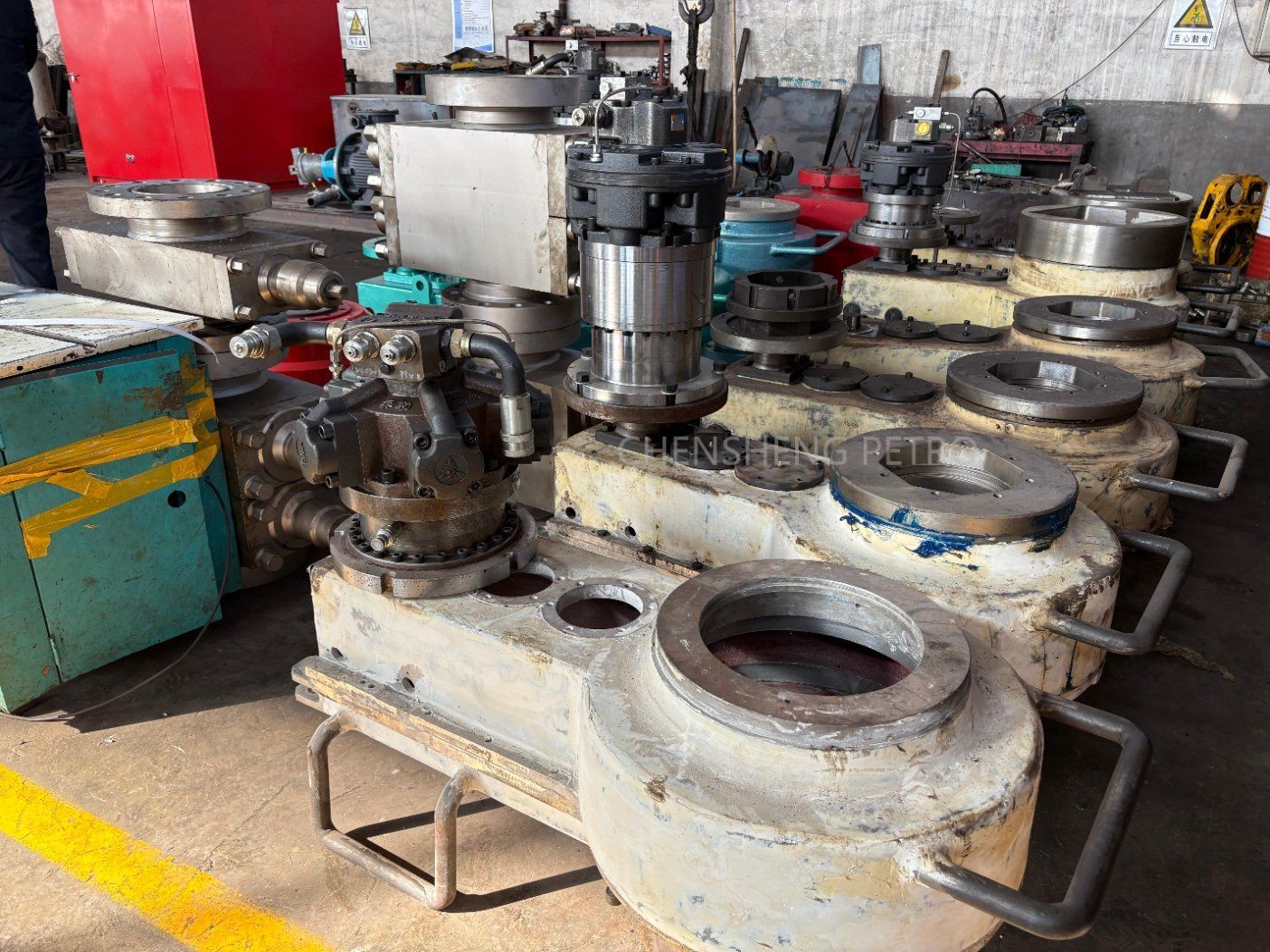

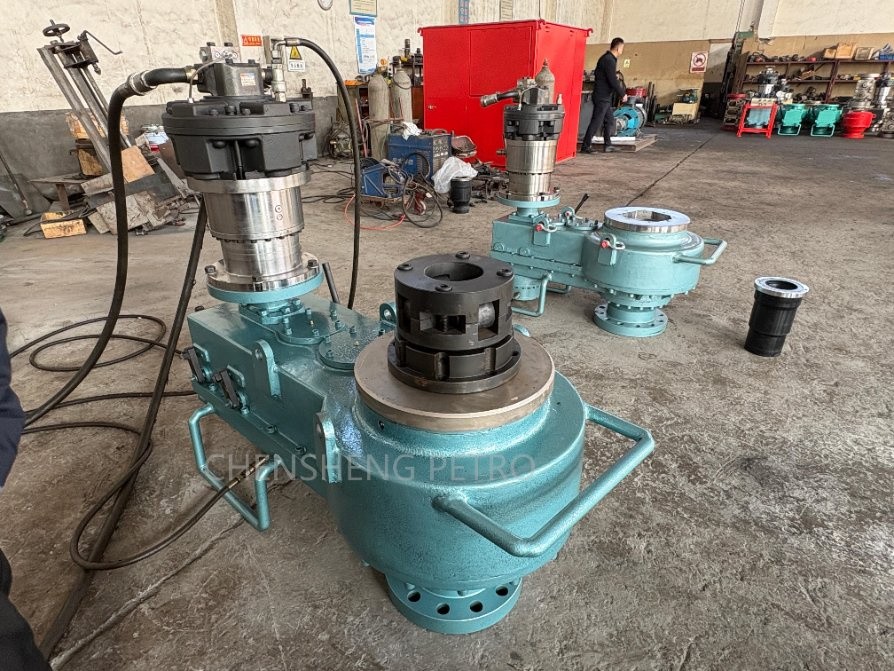

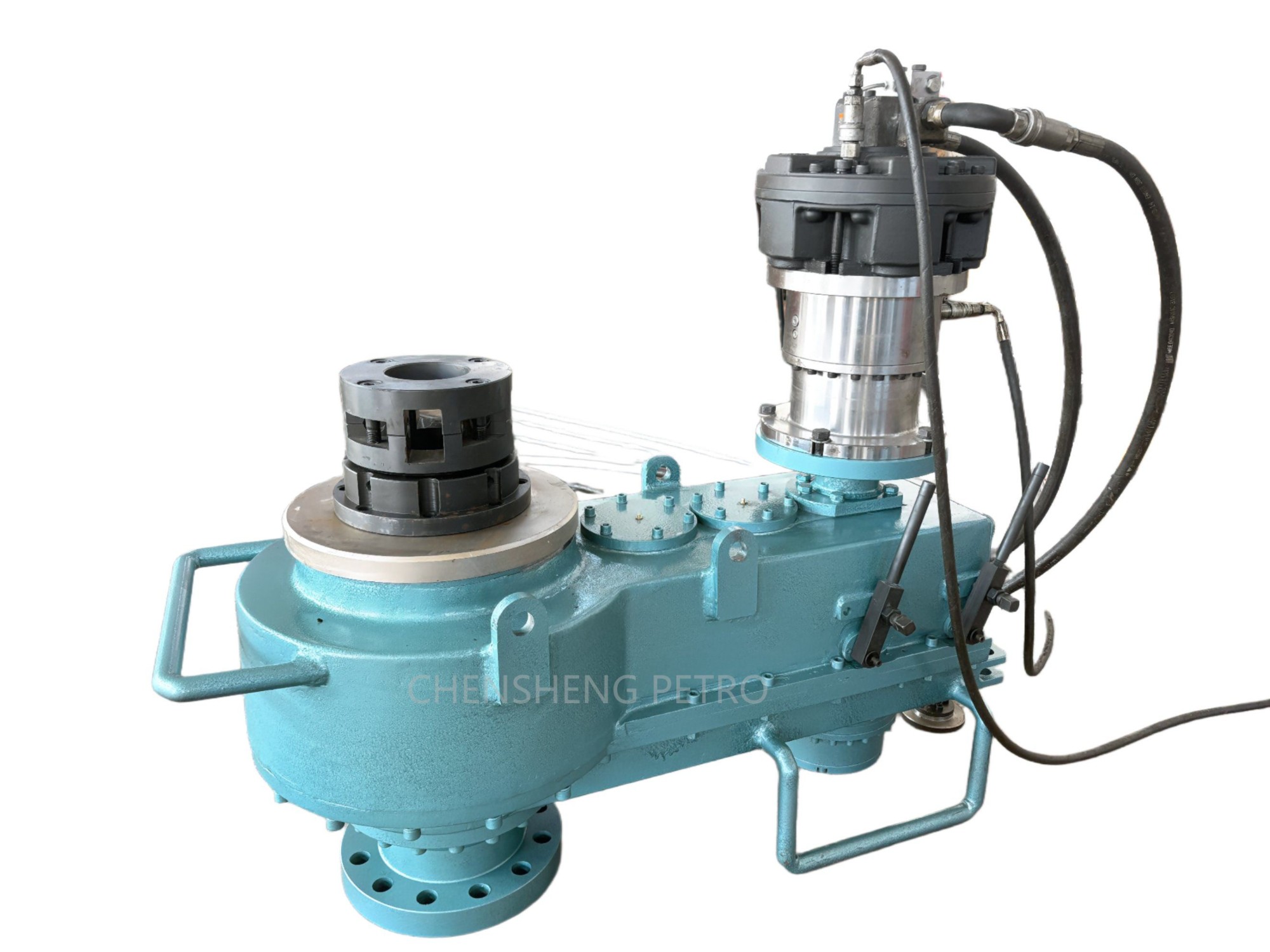

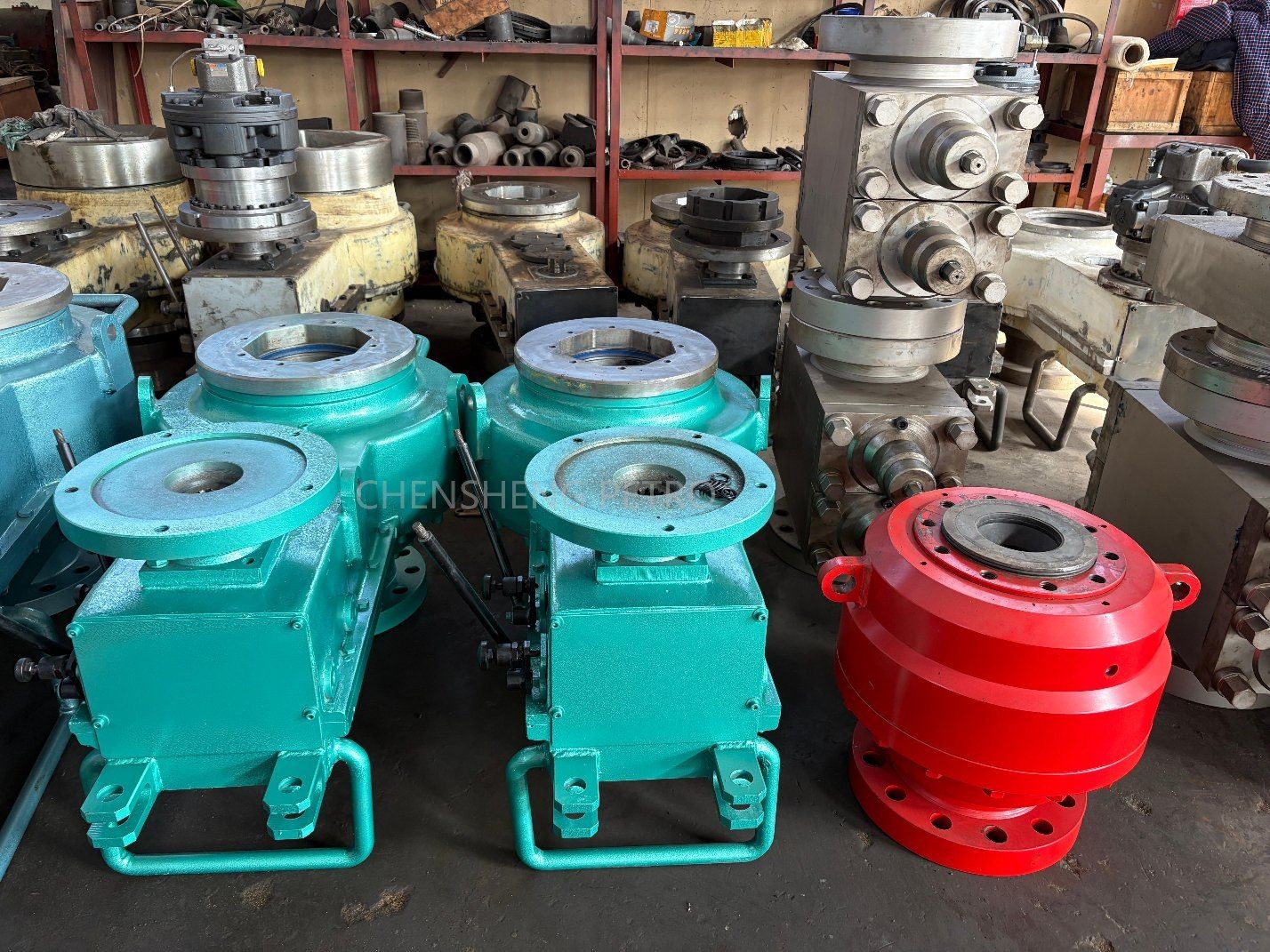

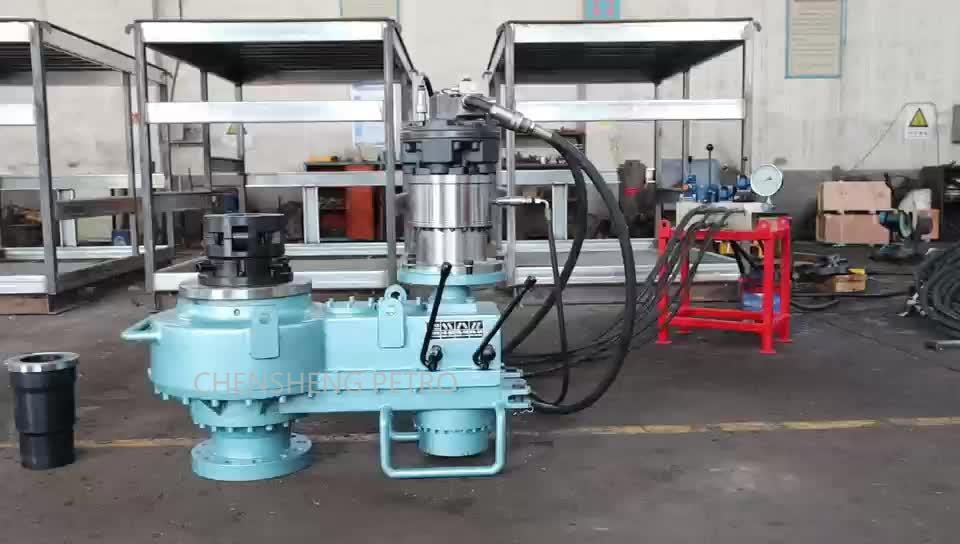

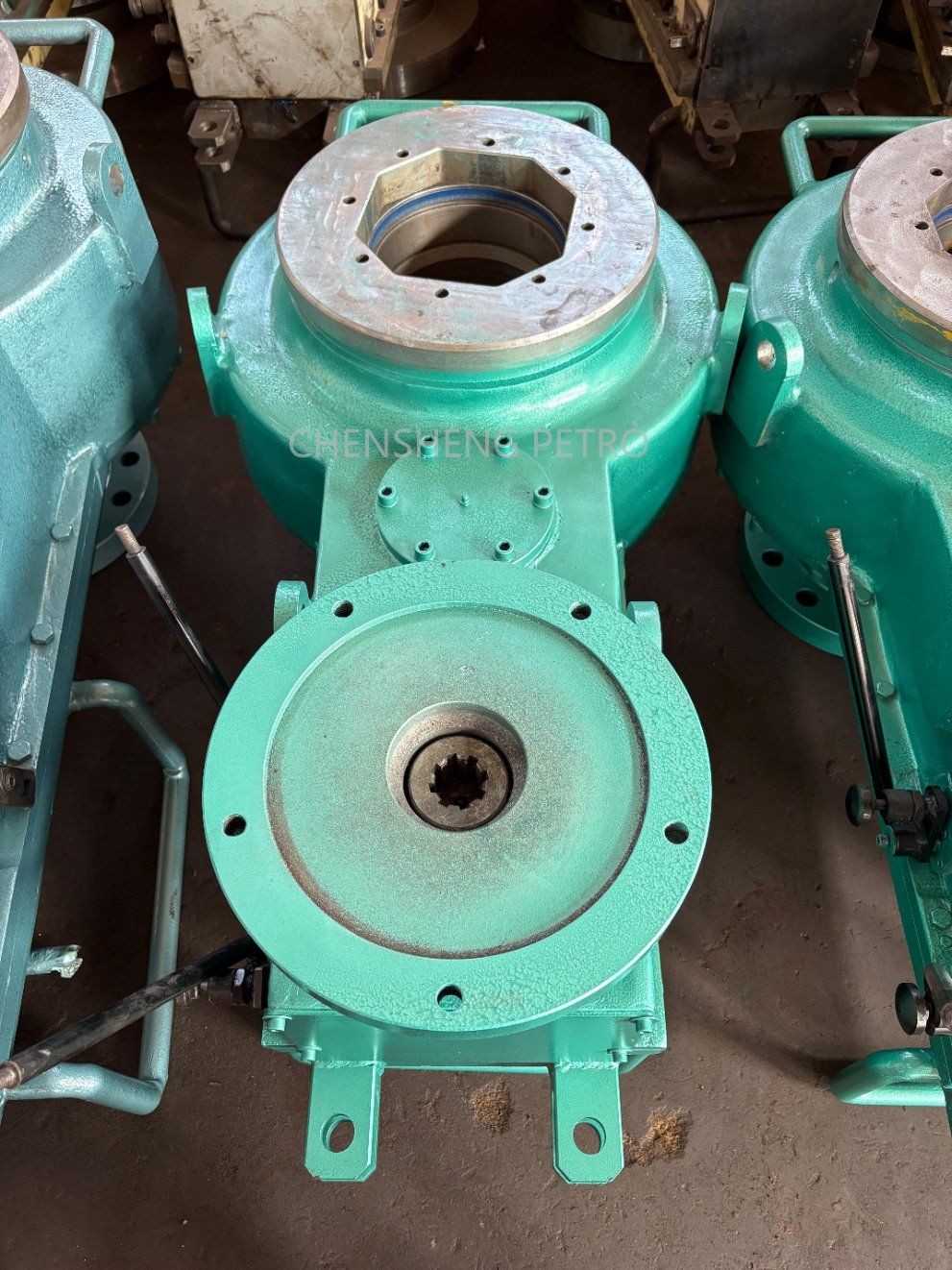

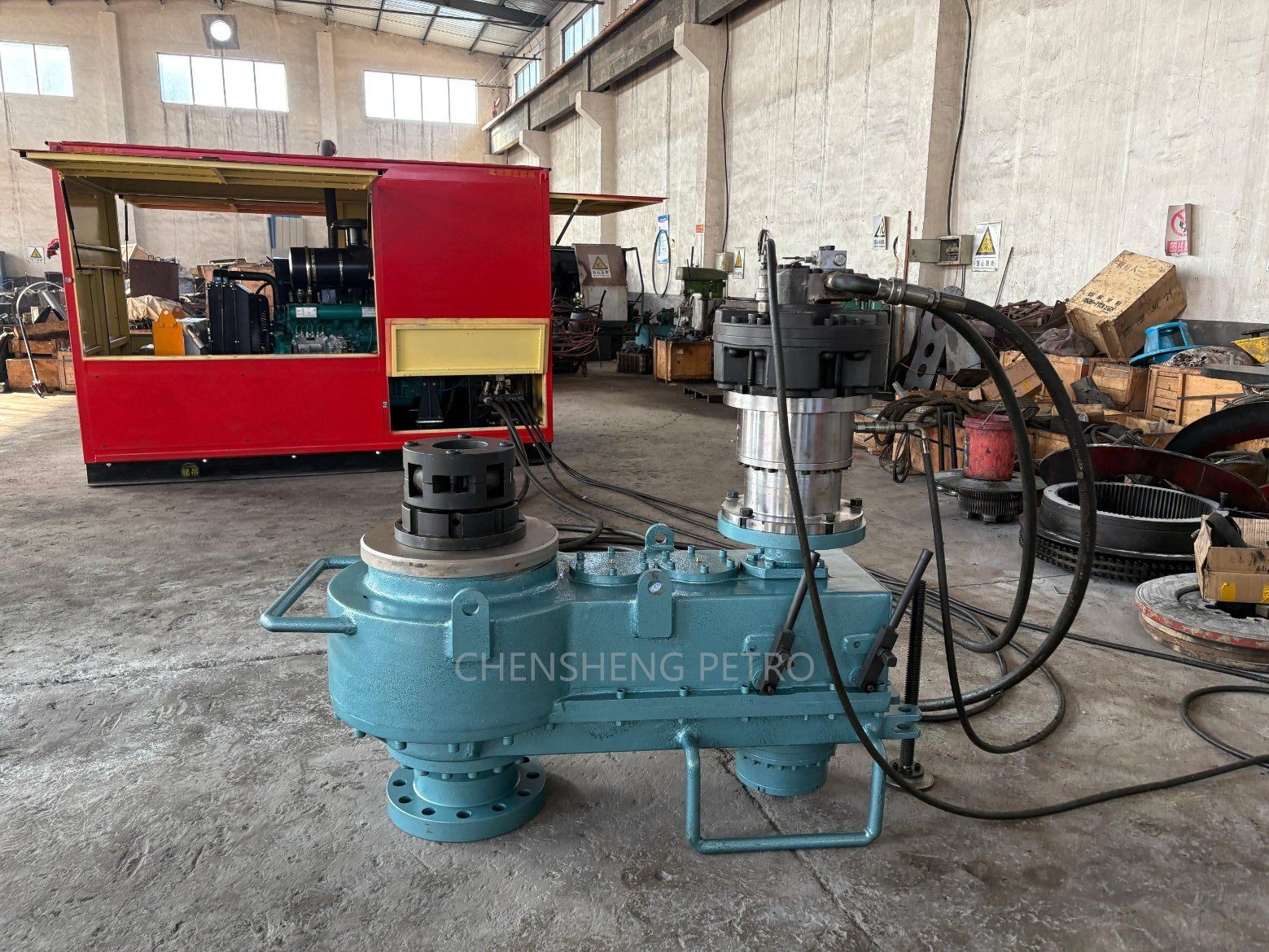

Hydraulic rotary table

It is a new type of mechanized equipment used in oilfield workover operations for drilling cement plugs, shallow well casing milling, and making couplings. The use of this equipment expands the operational scope and capability of small workover rigs, allowing small workover teams to replace large workover teams in performing certain rotating operations on drill strings, thereby reducing workover costs.

Main Function:

Easy installation and operation. Connect to 250 or 350 wellheads via bolts, and eliminate counter-torque during rotation using a tail rope for smooth operation.

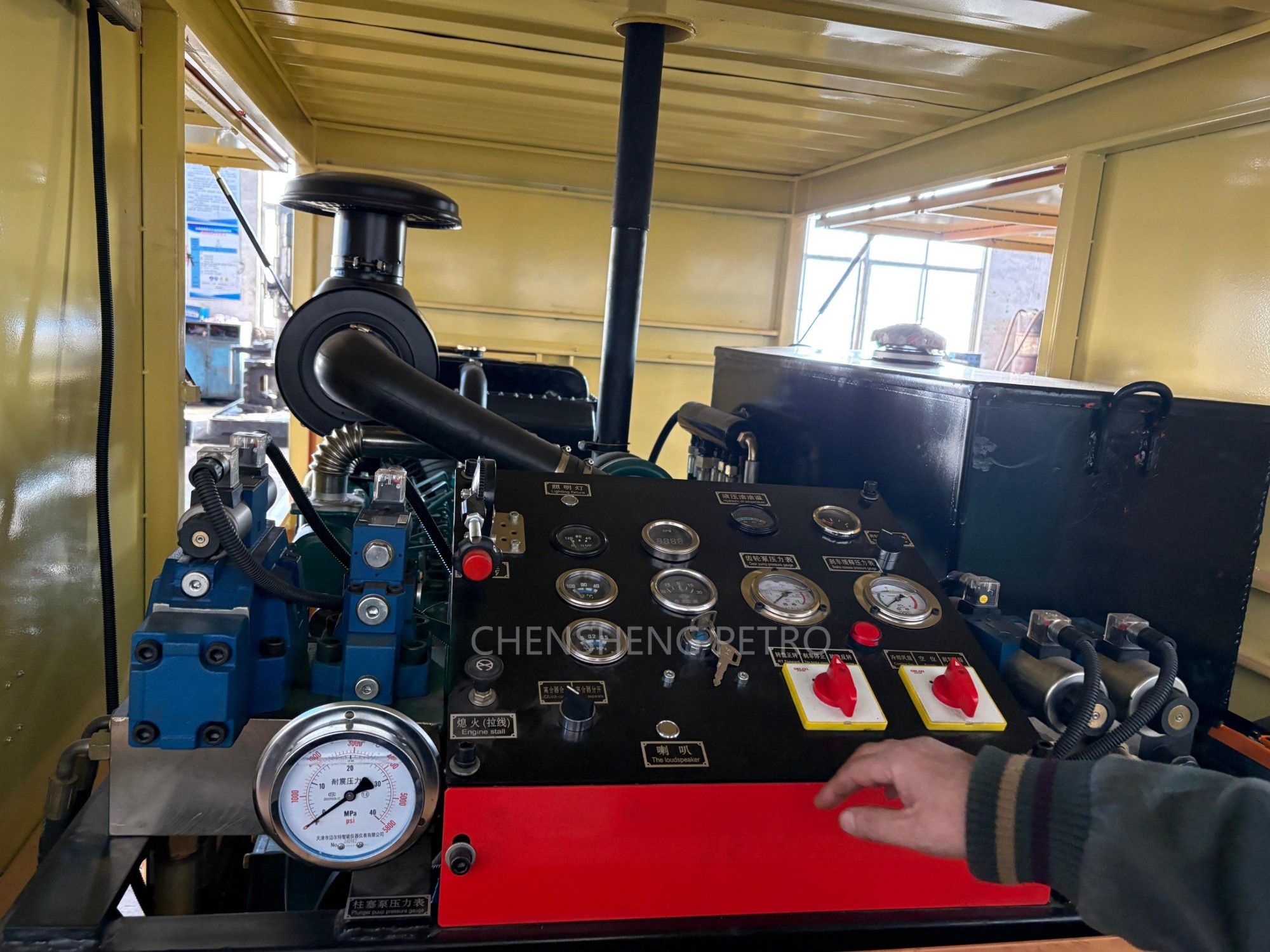

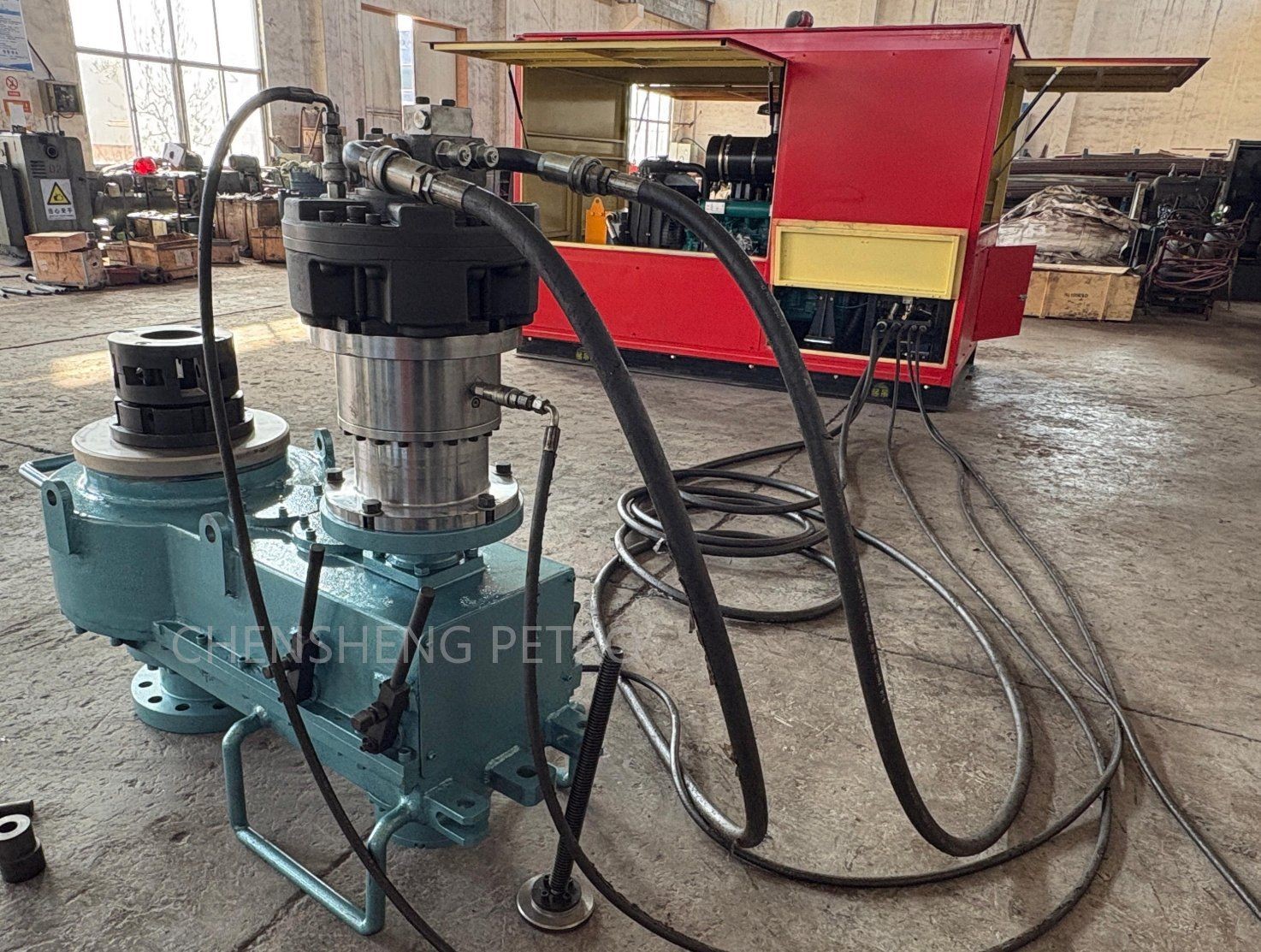

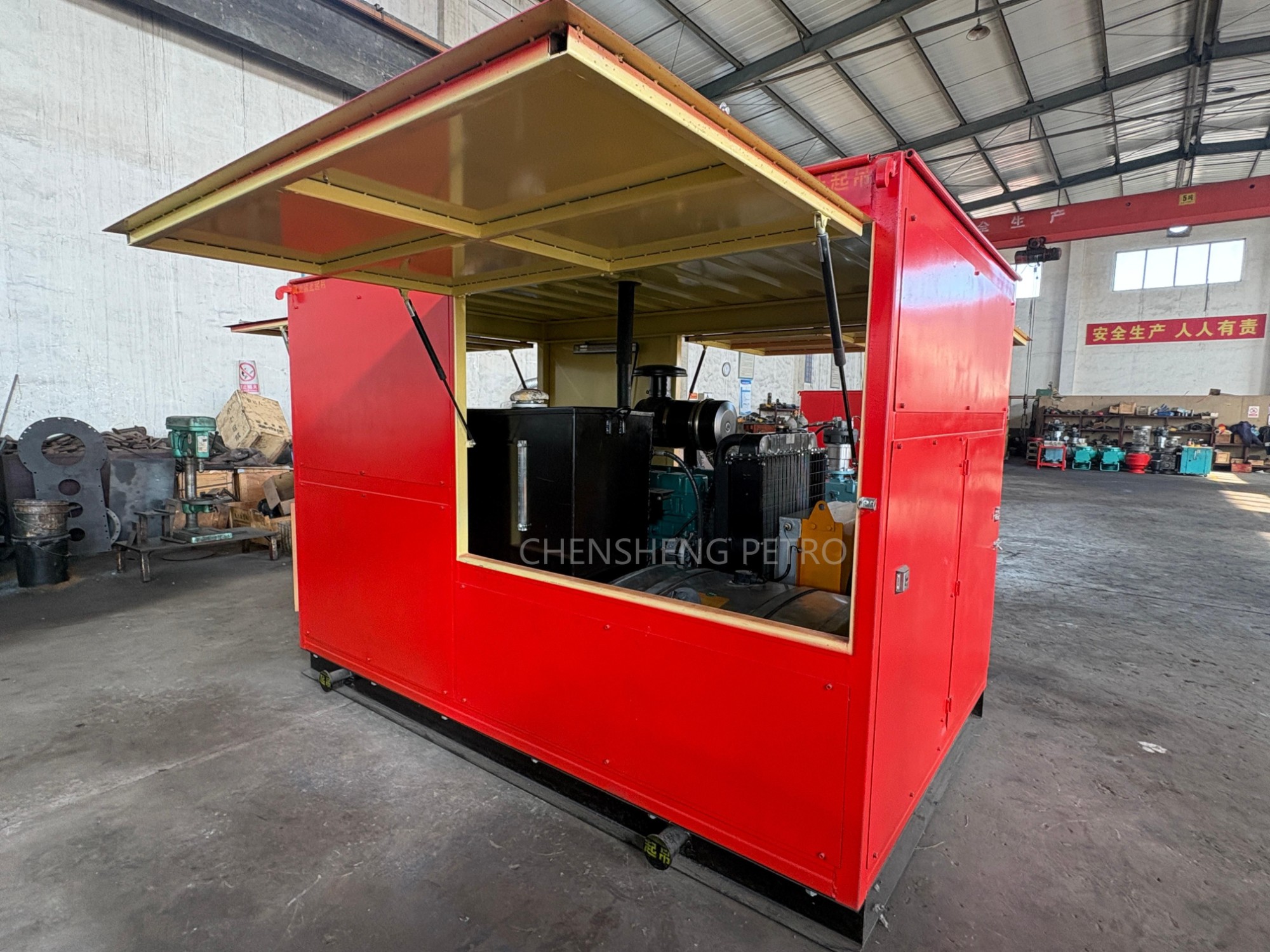

Flexible power source. Connect to directional valve assembly via hydraulic station or workover rig's hydraulic system, then link to hydraulic motor on the rotary table for operation.
Directional valve controls enable smooth rotation, braking, and operation with simple yet reliable mechanisms.
Features high, medium, and low gears to meet varying speed and torque requirements.
Incorporates the company's first-of-its-kind rotary table brake, clutch, and counter-torque release device. This allows motor-shaft decoupling during operation, facilitating gear shifts and complete torque release. It maximizes motor protection against counter-torque damage while effectively managing counter-torque (a force generated by downhole tools during construction). When rotation stops, counter-torque instantly releases, causing tools and table to reverse rapidly while triggering motor reversal and pressure surge. The brake-clutch system with counter-torque release significantly enhances operational safety.

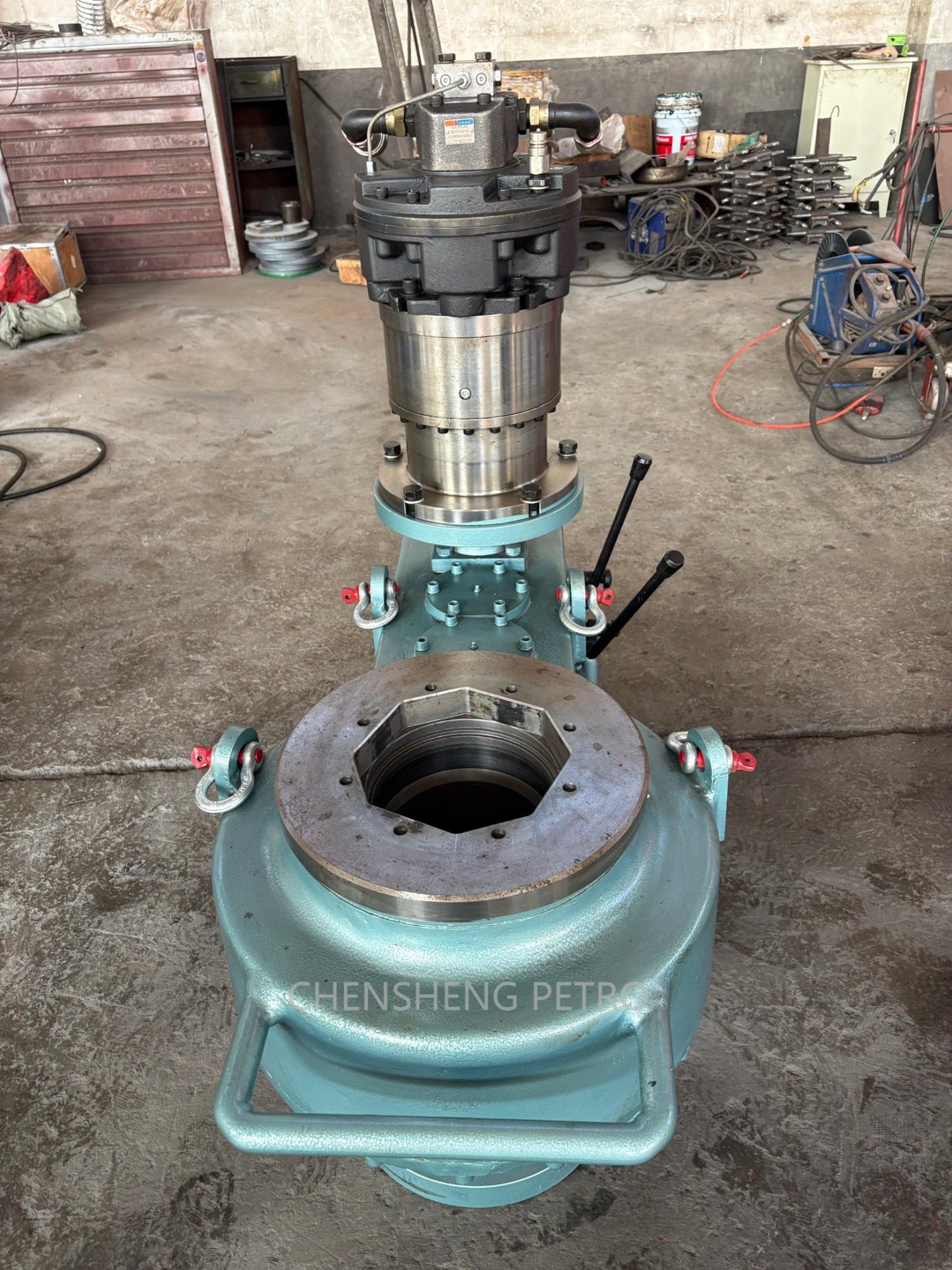

The rotary table and housing are sealed with rotating gaskets. The table features square drill pipe self-sealing cores fixed by tapered connectors, which prevent disengagement during rotation.

The design can effectively prevent the low and medium pressure oil and sewage from entering and flowing out of the rotary table, and increase the stability and safety of the rotary table.

Main parameters:

Item / Model		ZP70Y-24G	ZP70Y-24GL	ZP70Y-36	ZP280Y-24
Max. working torque	kN.m	24	24	36	24
Rotary table through- hole diamete	mm	180			280
Rotary table through- hole diamete	in	7			11
Applicable square drill pipe range	mm	76×76 (3")
Applicable square drill pipe range	mm	89×89 (3 1/2")
Square kelly type		Roller square kelly			Ordinary square kelly
Square kelly square hole size	mm	79×79 92×92
Self-sealing rubber specification		76x76 89x89
System working pressure	MPa	6-20	6-20	6-22	6-20
System rated flow	l/min	160
Rated speed	r/min	78
Low gear ratio		17.843	17.843	16.16	19.24
Medium gear ratio		8.571	8.571	5.866	9.243
High gear ratio		3.188	3.188	2.588	3.438
Matching motor model		TLM2-630	TLM2-630	TLM3-700	TLM2-630
Brake braking torque	Nm	3000	3000	3500	3000
Max. dynamic seal pressure	MPa	5
Max. static seal pressure	MPa	8
Max. static load	kN	600
Total mass	kg	880	960	1280	1100
Overall dimensions	mm	1310×630×1030	1310×630×1330	1500×720×1460	1370×630×1160
